    PRO 160C Overview

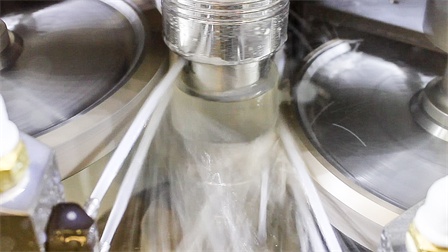

    The PRO 160C CNC precision optics centering machine is capable of high precision centering of spheres and aspheres up to 200 mm in diameter. Non-circular lens shapes (truncations), facets, steps, bevels, tapers and freeform edge shaping can also be performed on the PRO 160C. For parts that have multiple geometric features, more than one operation can be completed in a single cycle, freeing the operator to run several machines at once.

    Multiple advanced features help companies achieve exceptional centering production, precision, and repeatability:

    • Highest quality machine components are integrated into the PRO 160C, including quick-change high speed HSK63F tool spindles that minimize setup time.
    • At the core of the machine is a rigid granite base for excellent stability, ensuring highest quality and consistent part-to-part accuracy.

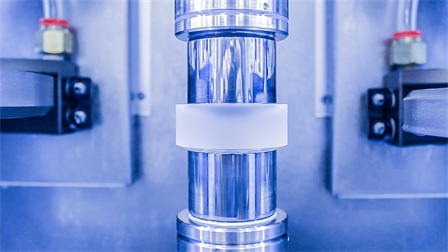

    • Centering bells are precisely manufactured with state-of-the-art metalworking equipment in-house by OptiPro’s team of machinists. High quality centering bells minimize any damage risk to the surface of the clamped optic.
    • Three options to center the workpiece – laser alignment via transmission or reflection, centering with dial indicator, or self centering.
    • Proficient bell clamping technology minimizes setup time by automatically applying the desired amount of clamping force that is specified.

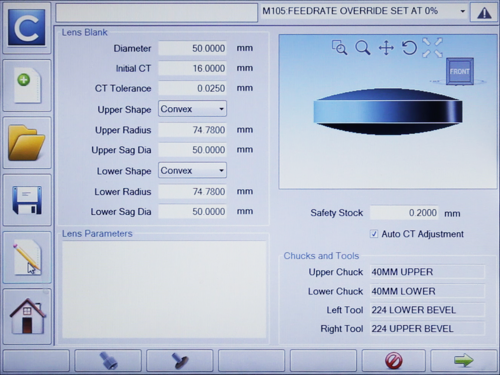

    • Intuitive Edge Detection feature allows the operator to quickly apply necessary bevels to the optic.
    • Center thickness compensation ensures accurate bevels and sag flats.

    The PRO 160C CNC centering machine delivers efficient and precise processing of optical glasses, ceramics, and IR materials in a variety of shapes and sizes.

  • Specs

    PRO 160C Technical Specifications

    CNC Optical Centering Machine Specs* PRO 160C
    Optimal Diameter Range Up to 200 mm (7.87")
    Maximum Workpiece Height Up 70 mm (2.76")
    Work Spindle
    Spindle Speed 0-200 rpm
    Work Spindle
    Spindle Speed 0-250 rpm
    Hydro Expansion Chuck 25 mm - Standard and Custom Bells Available
    C-Axis Position and Hold Standard
    Precise Clamping Pressure Up to 1,000N
    Tool Spindle
    Tool Holder Style Quick Change HSK63F
    Maximum Tool Diameter 220 mm (8.66")
    Maximum Tool Weight 6 kg (13.2 lbs.)
    Tool Spindle Speed 1,000 - 12,000 rpm
    Tool Holder Style ER40 Collet
    Spindle Power 7kW (9.5hp)
    X1 - Axis Travel 95 mm (3.74")
    X2 - Axis Travel 95 mm (3.74")
    Z1 - Axis Travel 180 mm (7.08")
    Z2 - Axis Travel 180 mm (7.08")
    Z3 - Axis Travel 85 mm (3.35")
    C1 - Axis Travel 360° Continuous
    C2 - Axis Travel 360° Continuous
    Communication Interface
    Ethernet Standard
    USB Standard
    Machine Dimensions
    Width 1,278 mm (50.3")
    Depth 2,032 mm (80")
    Height 2,282 mm (89.8")
    Weight 2,494 kg (5,500 lbs.)
    Facility Requirements
    Electrical 480V Wye +/- 10%, 58A
    Air Supply 100PSI, 5 CFM clean dry air
    Laser Alignment with Transmission Optional
    Laser Alignment with Reflection Optional
    Center Thickness Compensation Standard
    Truncation Grinding Optional

    * Specifications subject to change. Contact OptiPro for the latest specifications.
