Authorized Systems Integrator

As a distributor of the Fanuc Robodrill and Robocut line, OptiPro continues to work closely with Fanuc as a partner in robotic automation. From pallet design and material delivery to robot programming and work holding, our team of engineers will collaborate with you to provide a custom solution.

Fanuc offers more than 100 different robot models with load capacities up to 5,100 lbs (2,300kg), our team will find the best system for your application to increase your productivity. Applications can include include machine tending, part handling, washing/drying, inspection, packing and more!

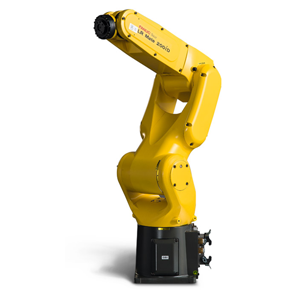

Featured Robot: LR Mate 200iD

The FANUC LR Mate 200iD is a compact 6 axis robot with the approximate size and reach of a human arm. It combines best-in-class robot

weight-load capacity with standard IP67 protection and outstanding FANUC quality.

Max Payload: 15.5 lbs (7 kg)

Reach: 28 inches  (717 mm)

Repeatability: 0.01 mm

Mounting Method: Floor/Upside Down/ Angle

Controlled Axes: 6

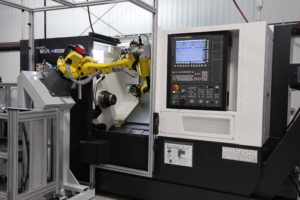

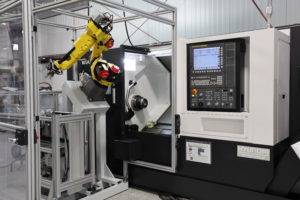

Case Study: Hyundai Wia Integration with Fanuc LR Mate

Hyundai Wia L3000SY Lathe Features

Twin spindle, single turret Fanuc control

Cycle time reducing structure for maximum productivity
Multi-tasking operation with wedge type Y-axis BMT65P turret
Integrated processing through synchronized control of Main/Sub spindle (“S” Type)
High performance heavy duty cutting enabled with box guideways
Improved maintenance through locating lubrication mechanisms on the front of machine

Fanuc M-20iD/35

Payload: 77 lbs (35kg) | Reach: 72 in. (1831 mm) | Axes: 6

With a payload of 35 kg this robot is designed for material handling of large parts. Equipped with outstanding axis speeds and ultimate precision within its class this robot is suitable for a wide range of applications.

Interested in learning how automation can help your shop?

Our team would be happy to discuss your application and what possible solutions would best fit. Automation configurations can be set-up with any machine in addition to the Fanuc machine line.

Contact our Team Today!
