Mastercam 2023 is here! OptiPro’s Mastercam team is ready to help you make the move to Mastercam 2023. Mastercam Maintenance customers can log in to my.mastercam.com to download now. For all other Mastercam users, if you want to update to the latest version, please contact our office for details, (585) 265 – 0160 or firstname.lastname@example.org.
Looking for Mastercam 2023 rollouts? Click here for recordings!
Below are ten features you need to know:
1. OptiRough Detecting Undercut Stock When Machining
In Mastercam 2023, achieving optimized motion is a matter of turning on a switch. The Dynamic OptiRough and Area Roughing toolpaths can now be aware of undercut stock conditions when rest machining. This results in improvements to the toolpath motion, including less air cutting.

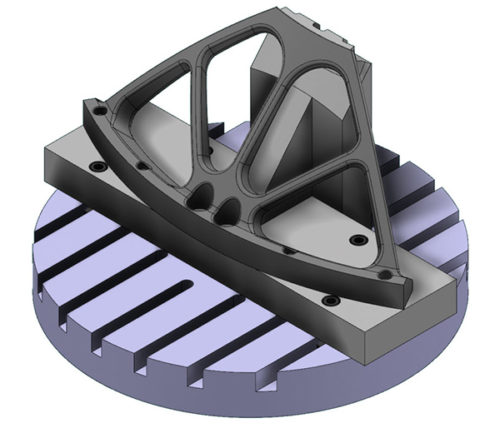

2. Unified Multiaxis Toolpath
Morph, Parallel, Along Curve, and Project Curve are no longer individual toolpaths in Mastercam 2023. Users can now find the same functionality inside the Multiaxis Unified toolpath. Unified allows for far more flexibility in cut pattern when programming Multiaxis, all within a new advanced feature set and consolidated, easy-to-use interface.
3. B-Axis Contour Turning Toolpath
One of our favorite Mastercam 2023 features: the new B-Axis Contour Turning toolpath. It allows for rotation of the B-axis while the lathe or turning tool is cutting. This means fewer tool changes and less cycle time. Users can now knock out difficult-to-reach areas and access undercut with one tool.
4. Machine Group Setup
With Machine Group Setup (MGS), setting up a job in a CAM system from stock to simulation has never been easier or more organized. MGS introduces the concept of Master Model to Mastercam, an intuitive interface which allows the system to be more aware of what the finished part is for programming and simulation. Components can now be imported and positioned correctly right inside the MGS interface.
5. Supporting Multiple Steady Rests
Confidently control the work holding in your Mill-Turn machine with multiple steady rests. Mastercam’s modular machine definition architecture means that you can organize your steady rests in several different configurations.

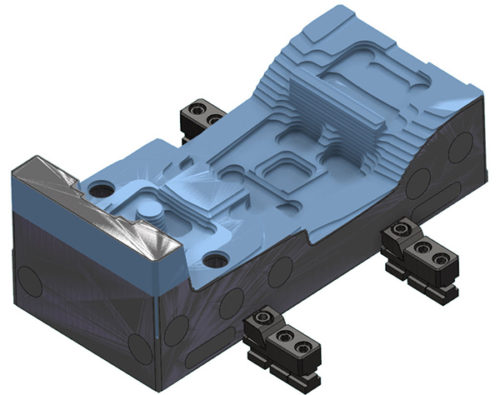

6. Equal Scallop Stock Awareness/Step Ins
Equal Scallop is a fully stock aware, semi-finishing toolpath that now identifies material left in corners and will machine with a single pass or with multiple passes to ease into the material. With this new functionality, simply specify a previous roughing tool and a max engagement and Equal Scallop automatically creates iterative and safe step in passes to prep for finish. This functionality essentially turns Equal Scallop into a stock aware, semi-finishing toolpath.

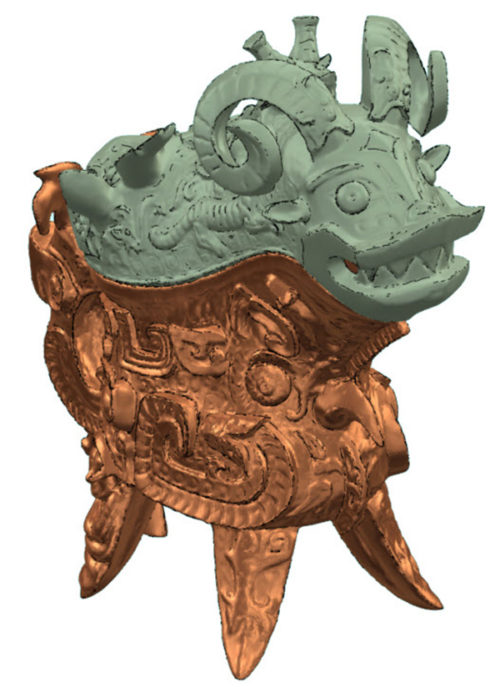

7. Mesh Enhancements
Check Mesh includes a new option in Mastercam 2023 to delete problem facets. Meshes have always been a challenge to machine, but due to advancements in reverse engineering, they are becoming more prevalent. Check Mesh can analyze and fix problem areas to prepare models for programming. Combine this functionality with the other powerful mesh enhancements, and Mastercam is perfectly suited to complement and enhance new additive and reverse engineering technology.

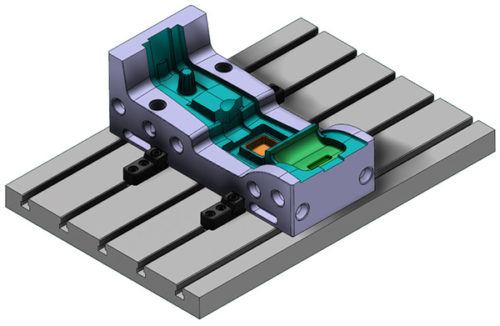

8. More Powerful and Flexible 3D Roughing Linking
Control and optimize your air cuts with the new linking parameters in OptiRough, which allow for greater efficiency in roughing toolpaths when transitioning between passes or when in air. No matter how efficient the roughing program, air cuts make up a significant portion of cycle time and the ability to control and optimize this motion is just as critical as getting feeds and speeds set correctly
9. Grouping Viewsheets
Mastercam 2023 gives you the ability to create viewsheet groups. Use viewsheet groups for better organization, more efficient workflow, and reduced on-screen clutter. To support even the most complex assemblies, users can now categorize views by color and grouping.

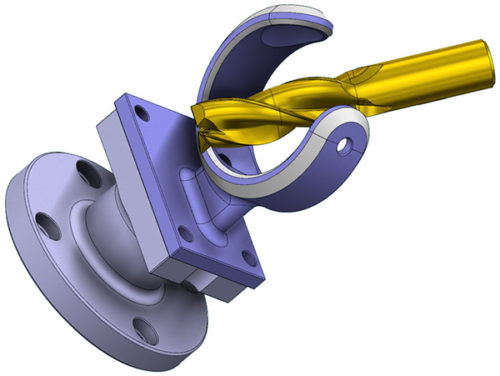

10. Controlling the Tool Contact Point
A win from every angle: Deburr now supports more than just ball endmills. The Deburr toolpath includes a new Fixed tool contact point on cone/cylinder option, which controls the tool’s contact point during machining. This new tool axis feature creates Swarf-like functionality with the selection of just a solid edge. No more custom lollipop tools; you will now find less cost, less cycle time, and easier programming all in Mastercam 2023.
