Nakamura-Tome Multitasking Machines
Nakamura-Tome is the premier multitasking machine manufacturer, offering more than 20 twin spindle machine configurations. From raw stock to complete parts in one setup, Nakamura-Tome multitasking machines can reduce cycle times and eliminate extra operations. Nakamura-Tome machines feature highly original and innovative functions. These state-of-the-art tool-spindle type and turret-type multitasking machines help companies meet a wide range of needs, from low-volume diversified production to mass production.

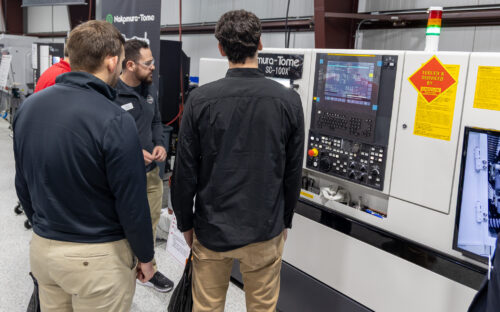

OptiPro Systems is proud to be the distributor of Nakamura-Tome solutions for manufacturing companies in Upstate NY. Contact OptiPro to find the right machine for your application.
See below for more information about Nakamura-Tome multitasking machines and learn how your company can maximize productivity and profitability:
-
AS-200LMY-S
High performance multi-tasking turning center
Space Saving Combined Machine Tool with Y-axis & Milling Function- With Milling Function: 7.5/5 HP, Spindle Speed – 6000rpm
- Strong Spindle Motor: 20/15 HP – 4,500 RPM
- Subspindle Motor: 10/7.5 HP – 6,000 RPM
- C-axis synchronization
- High Speed Index – X-axis: 24 m/min, Z-axis: 36 m/min, C-axis: 600 min-1.
- Turret: Max Dodecagonal Drum Turret (Max. 24 station)
- Number of Milling Tool (dodecagonal drum turret): 12
-

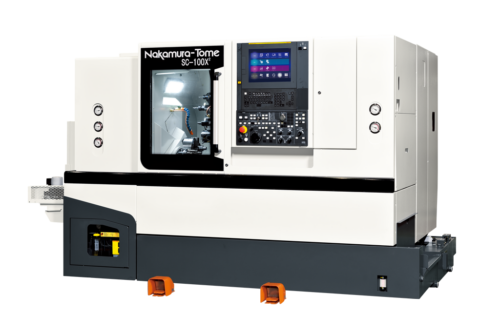

SC-100X2
Twin-turret multi-tasking machine – Utilizing two tools on either side of the upper turret for superimposed machining
Superimposed Machining- Oscillating Cutting
- 15/10 HP Spindle Motor
- Spindle Speed 6,000 min-1
- Faster Rapid Traverse 20 m/min for the X-axis, and 36 m/min for the Z-axis
- Bar Capacity 52mm / 2” Standard
- All FANUC, CNC Control and Servo Drives.
- Dodecagonal 12 Station Turret
-

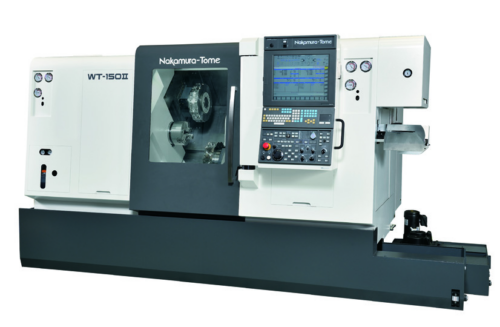

WT150II
Most diverse range of dual turret multi-tasking turning centers available today
20/15 HP Left and Right Spindle Motor- Driven-Tool Motor Power 7.5/5 HP, for Heavy Cutting with Small Tools
- With Upper / Lower Turret Construction, 4-axis Machining as well as various other Machining Combinations Possible on Either Spindle
- With Upper / Lower Turrets and Opposing Two-spindle Construction, Cycle Time Balancing and Reduction is Possible
- With up to 24-tools per Turret, 48 Tools can be Permanently Available
- Milling Turrets with Y-axis for Upper Turret
-

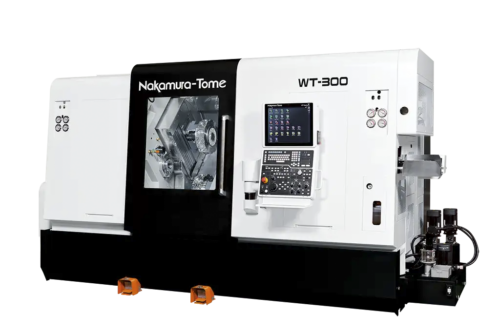

WT-300
High rigidity multitasking machine equipped with high-output motors featuring the ultimate in machining performance, in both turning and milling
20/15 HP Left and Right Spindle Motor- Driven-Tool Motor Power 7.5/5 HP, for Heavy Cutting with Small Tools
- With Upper / Lower Turret Construction, 4-axis Machining as well as various other Machining Combinations Possible on Either Spindle
- With Upper / Lower Turrets and Opposing Two-spindle Construction, Cycle Time Balancing and Reduction is Possible
- With up to 24-tools per Turret, 48 Tools can be Permanently Available
- Milling Turrets with Y-axis for Upper Turret
-

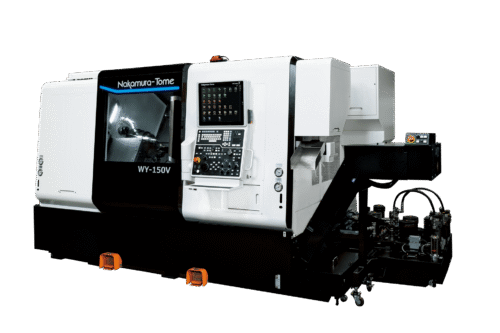

WY-150V
CNC multitasking lathe specifically designed for speed – featuring Y-axis standard upper and lower turrets and opposed twin spindles
NT Smart X- Oscillating Turning
- Manual detachable tool setter
- Triple alarm light
- Spindle speeds:
- Left Spindle: 5,000 rpm
- Right Spindle: 6,000 rpm
- Bar capacity:
- Left Spindle: 2.5” (65mm)
- Right Spindle: 2.0” (51mm)
- 12 station bolt-on upper and lower turret
- 10,000 rpm milling all stations
- Full “C” axis milling (Left/Right)
- Turret Y-axis travel:
- Upper turret: +/- 1.77” (45mm) = 3.54” total
- Lower turret: +/- 1.37” (35mm) = 2.75” total
- Parts catcher – Type G
- Machine weight 22,050 lbs
-

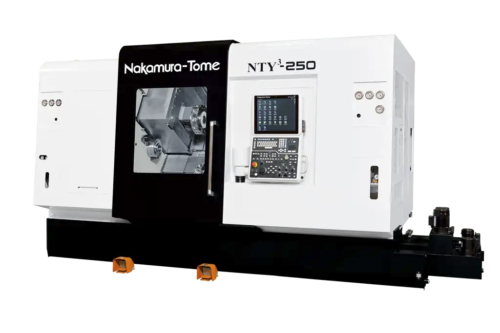

NTY3-250
The most productive 3-turret machine available for today’s high-precision manufacturers
Opposing Two-Spindle, 3-Turret Construction- 72 Tool Stations
- 36 Driven-Tool Stations
- 4.4 in. Y-Axis on 3-Turret
- 6,000 min-1 Driven-Tool Speed (on all 3 turrets)
- 30/25 HP Left Spindle Motor
- 25/20 HP Right Spindle Motor
- 7.5 HP x3 Driven-tool Motor (Upper / Lower)
- 3 in. Bar Capacity
-

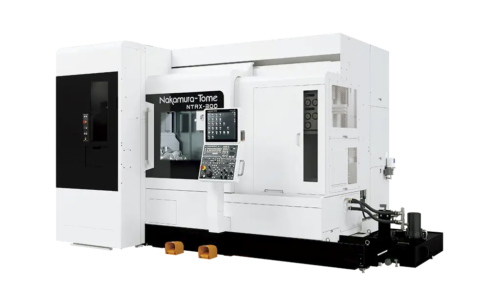

NTRX-300
Very heavy-duty machine with full twin spindles and a robust tool spindle, featuring the new Smart X control from Nakamura
X and Y-axis Travel Ensure a Wide Machining Range – X-axis travel 5″ below spindle center ensures a wider machining range- Highly Rigid Design – All units are located on the main frame vertically for high rigidity
- Operator Friendly Design – Spindle Center is easy to reach, thanks to 17 in distance from the machine front and 43 in height from the floor
- New Operation Panel with NT Smart X Control – Featuring Operation Level Management, Camera, Voice Guidance, Production Management and 3D Collision check, all Included as Standard
- Modular Design – Choose from R-spindle Type or Tailstock Type
-

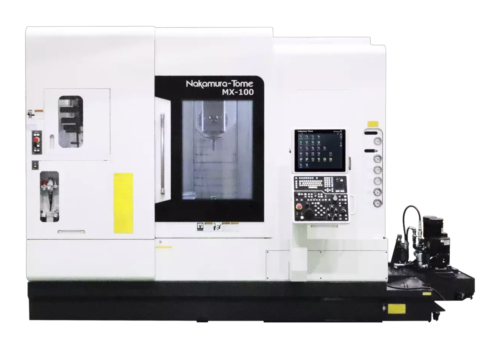

MX-100
Compact, high-precision Multitasking Machine with the capabilities of a Machining Center and a Turning Center
- Milling・Y-axis standard
- ATC tool spindle standard
- TC tool spindle motor 11/7.5kW
- Spindle speed: 12,000min-1 (op. 20,000min-1)
- ATC storage capacity: 36 tools (op. 48, 72 tools)
- X-axis travel up to 50 mm below spindle center
- Y axis travel ± 105 mm with respect to the spindle center
- Floor space: 4,350mm x 2,795mm
- Lower turret milling motor power: 7.1/2.2 kW with Max. speed 6,000 min-1
- Eco-friendly: Grease lubrication of slide axes
- Advanced software and Smart features
- Milling・Y-axis standard
