Robotmaster - CAD/CAM for Robots

Robotmaster seamlessly integrates robot programming, simulation, and code generation inside Mastercam, delivering quicker robot programming.


Powerful Part Modeling – Streamlined CAD engine makes design work easier than ever before. Each piece of geometry you create is “live”, letting you quickly modify it until it’s exactly what you want. Traditional functions are consolidated into a few simple clicks to simplify the creation of even the most complex parts.

Wireframe, surface, and solid modeling

Import CAD Model – Alternatively the part may be created using other CAD software and the model may be imported either directly in your choice of native or neutral file formats. Data translators are available for IGES, Parasolid®, SAT (ACIS solids), AutoCAD® (DXF, DWG, and Inventor TM files), SolidWorks®, Solid Edge®, STEP, EPS, CADL, STL, VDA, and ASCII, CATIA®, Pro/E®, and more.

Engineering Changes Made Easy– Every shop faces engineering changes and two powerful new tools are available – File Tracking and Change Recognition – that give you an easy way to identify CAD model revisions and streamline programming an updated file. The real power of these tools becomes clear when receiving engineering changes to a large file with multiple operations. Something as simple as a few additional drill holes could be frustrating to identify. Now, with a few mouse clicks, you can immediately locate and program these changes, saving valuable time.

Automated Change Recognition

CAD/CAM Based Programming – Create simple or complex robot trajectories accurately without teaching points using Mastercam Mill or Router. The programming of the robot trajectory is done graphically using the same process and tools used for CNC machines, by selecting geometry (lines, arcs, part edges and/or 3D part). Once the geometry is selected, parameter boxes guide the user in making the proper selection of process information. The software automatically generates the robot trajectory based on the above information.

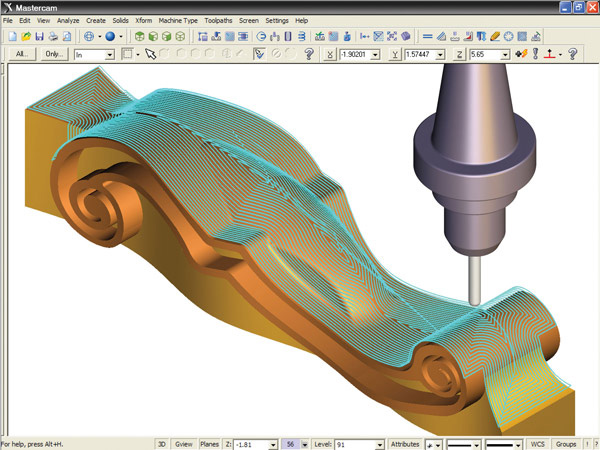

Flexible finishing

Automated Material Removal

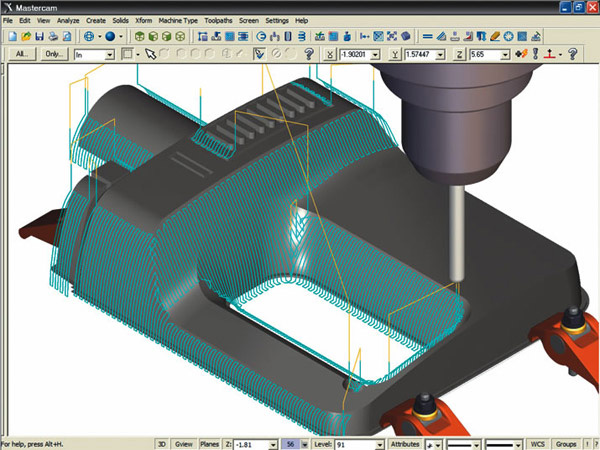

Optimized Finishing

Leftover re-machining

Flexible Tool Orientation

Precise Tool Axis Control

Associative Toolpaths – Fully associative geometry and toolpaths let you modify the geometry or machining parameters and immediately get an accurate, updated toolpath.

Toolpaths are associative to CAD model

Toolpaths are associative to CAD model

Robot Configuration Libraries – Use Robotmaster’s extensive configuration library to easily select your Robot and End-of-arm Tooling and convert CAD/CAM toolpaths for your specific hardware requirements and setup.

  • Choose from FANUC, AAB, MOTOMAN, KUKA, STAUBLI and more
  • Enter robot operating parameters like:
    • Entire robotic cell setup
    • End of arm tooling
    • Setup (user frame and tool center point data)
    • Tool changer information
    • Motion parameters
    • Linear rail and/or rotary table configuration
Convert CAD/CAM toolpaths to robot positions

Convert CAD/CAM toolpaths to robot positions

Optimization of Programs – Use automated settings to quickly optimize robot motion and precise control of rotation around tool for:

  • Avoiding singularity and joint limits
  • Maximizing robot dexteritys
  • Optimizing joint speeds and ensuring smooth robot playbacks

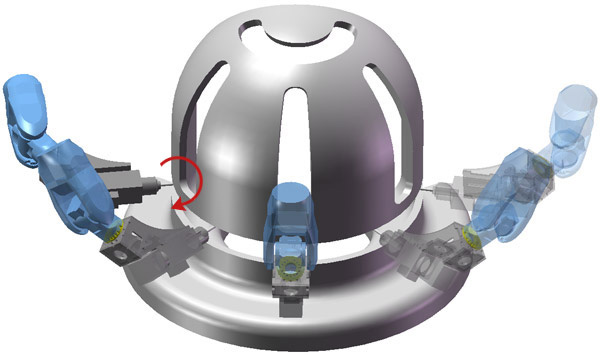

Vary tool orientation by rotation

Vary tool orientation by rotation

Maintain fixed tool orientation

Maintain fixed tool orientation

Rotate tool across the trajectory

Rotate tool across the trajectory

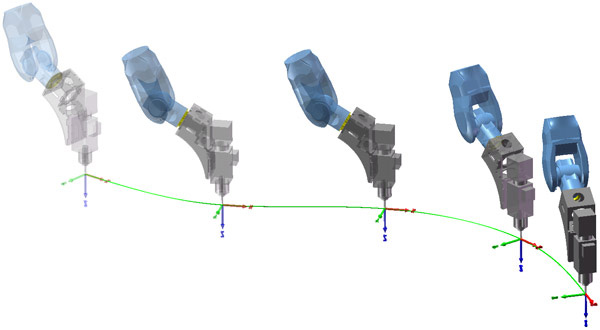

Follow a relative orientation along a trajectory

Follow a relative orientation along a trajectory

Robot Simulation – Validate the programs by using Robotmaster’s robot simulator

  • View robot motion in continuous or step mode, by individual operation or complete toolgroup
  • Automatic detection of collisions
  • View either robot only or entire manufacturing cell

Hide housing during simulation

Simulate entire cell with housing

Detection of tolling to part collision

Detection of robot to part collision

Code Generator – Robotmaster’s post-processor generates the robot-ready program file

  • Generate programs in robot native language
  • Customizable robot code output
  • Multi-file output for managing long programs with limited robot memory

Multi-file output for managing long programs

Simulate entire cell with housing
