CNC Optical Grinding Machines

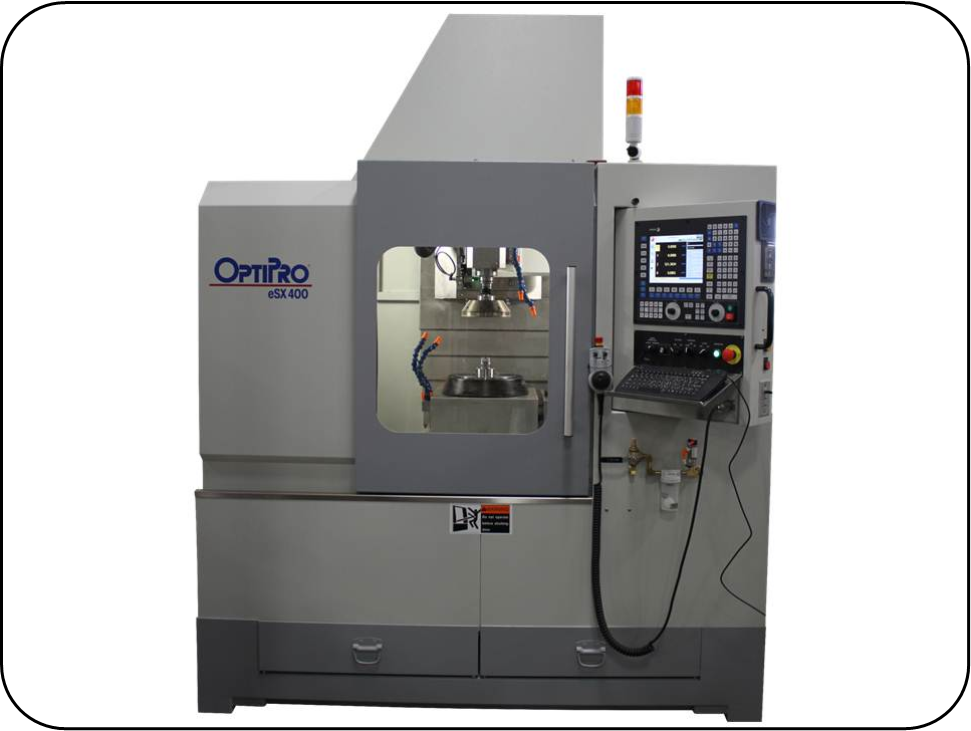

OptiPro Systems' eSX Series is a full 5-Axis CNC lens grinding platform. This platform implements the latest in CNC technology and state-of-the-art motion control components and positioning systems for grinding precision optics. The rigid cast iron construction provides a stable base for a robust process and ensures the generation of optimal surface quality during grinding. OptiPro's easy-to-use graphical user interface is essential for fast setups and provides powerful tools for the operator or optician. The large work envelope and generous axes travels entertains a wide range of work sizes and fixturing configurations.  Spheres, aspheres, cylinders and prisms are easily setup on the eSX platform with on board and offline programming. Automated tool and work piece probes aide in the setup and process monitoring. A variety of quick change high speed tool spindle configurations optimize this platform for your specific fabrication requirements. The robust work spindle, with ½ micron runout, also incorporates a positioning axis for precision truncations and beveling operations. The eSX platform is the cost effective solution for grinding precision optics.

The PRO 80G or GTS (Grinder, Twin Spindle as an option) is one of four machines in the new PRO Series line for optical production. With powerfully simple job-setups, exceptional ergonomics, highest quality machine components and robust spindles, the PRO Series provides competitively priced machines built completely in the USA!

---

High Precision Lens Generator: 5-80 mm Optics The PRO 80G or GTS (Grinder, Twin-Spindle as an option) is capable of grinding spherical lenses in optimal cycle times with high precision.

PRO 80G >>

5-Axis Grinding Platform: 5-150 mm Optics OptiPro's eSX 150 optical machining centers have 5 controllable axes: X, Y, Z, B & C with up to 5 axes of simultaneous movement. The powerful Fagor 8070 CNC with user-friendly set up and run programs make the eSX 150 an excellent choice for prototype to production manufacturing of precision optics. Additional features include automatic tool and work piece probes, twin spindles, automatic tool changers, mist removal, and more.

eSX 150 >>

5-Axis Grinding Platform: 5-300 mm Optics OptiPro's eSX 300 is an enhanced version of the eSX 150 optical machining center. It also has 5 controllable axes: X, Y, Z, B & C with up to 5 axes of simultaneous movement. The powerful Fagor 8070 CNC with user-friendly set up and run programs make the eSX 300 an excellent choice for prototype to production manufacturing of precision optics up to 300 mm. Additional features include automatic tool and work piece probes, twin spindles, automatic tool changers, mist removal, and more.

eSX 300 >>

---

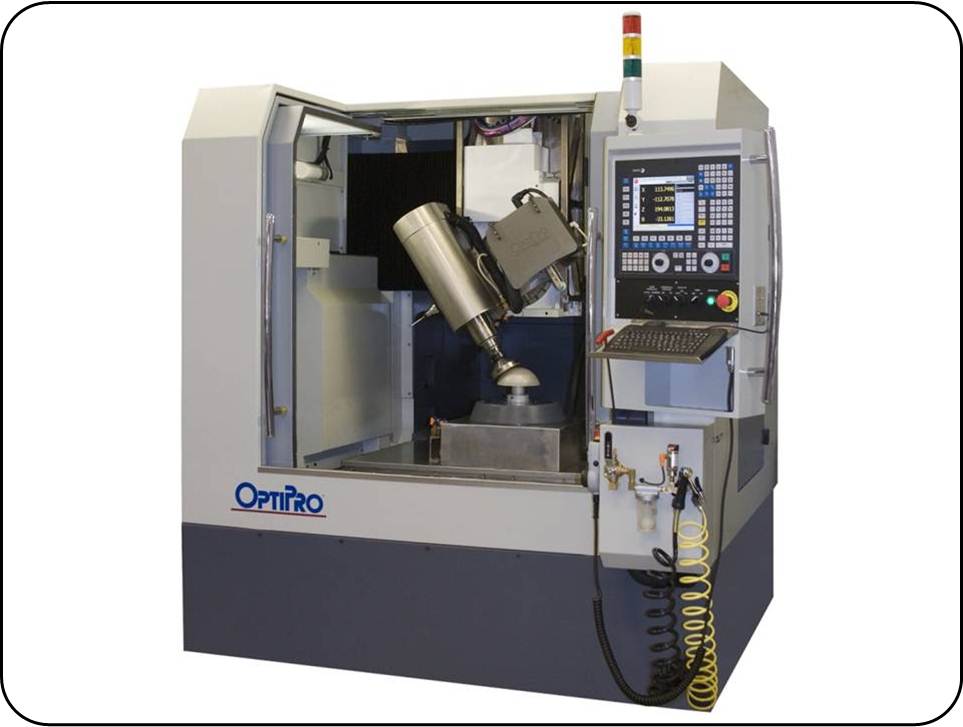

5-Axis Grinding Platform: 10-500 mm Optics The SXL 500 developed by OptiPro Systems is a 5-Axis CNC controlled bridge style optical grinding platform. The unique axes configuration provides an accurate and versatile platform for grinding brittle materials such as glass, ceramics and hardened steels with a base size of 500mm. The straight forward user interface and probing routines provide a tool that opticians and CNC machinists alike can use to generate spherical and aspherical optical surfaces with reduced setup times.

SXL 500 >>
