WIA CNC Turning Centers
WIA CNC Turning Centers are engineered for high performance production, delivering the precision, power, and reliability manufacturers depend on. Rigid cast iron construction, thermal stability, and high torque spindles produce excellent surface finishes, tight tolerances, and consistent accuracy—even when machining hardened steels and exotic alloys. Advanced CNC controls, fast traverse rates, and efficient programming reduce setup and cycle times, while options such as live tooling, Y axis capability, sub spindles, and automation readiness enable true multitasking in a single setup.
Designed for durability and low operating costs, WIA CNC turning centers help shops increase throughput, reduce secondary operations, and maximize return on investment.
-
SE2200LSY
Multi-Tasking Y Axis Turning Center
Reduce machining time with integrated processing using sub spindle and various rotary tools
- 30° slanted one-piece bed structure with high rigidity
- Stabilized unit structure to minimize thermal displacement
- Integrated processing through synchronized control of Main/Sub spindle
- Multi-tasking operation with wedge type Y-axis BMT45 turret
- Excellent rapid traverse rate (X/Y/Z) : 30/10/36 m/min (1,181/394/1,417 ipm)
- Ergonomic design for convenient access to chuck and tool
- X/Y/Z Travel: 8.3/4.3/22 in (210/110/560) mm
- 4,500 RPM Spindle / 6,000 RPM Sub-spindle
- 6,000 RPM Driven Tools
- 8” Chuck
- 2.6” Bar Capacity
- 20” Max Turning Length
- 11.8” Max Turning Diameter
- Machine Weight: 9,480 lbs.
Download Brochure
- 30° slanted one-piece bed structure with high rigidity
-

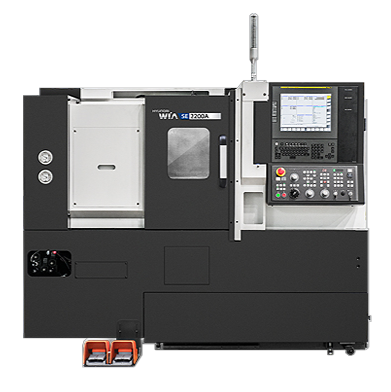

SE2200A
High-speed 6/8/10-inch CNC Turning Center for Productivity- 30° slanted one-piece bed structure with high rigidity
- Ensured high-rigidity applying Roller guideway on all axis (X/Z-axis: 30/36m/min)
- Improved user convenience by applying the latest controller of FANUC
- Prepared user-oriented lineup including long-bed, mill turret and sub-spindle
- Compact structure with internal-motor design (for standard-type bed)
- Ergonomic design for convenient access to chuck and tool
- Max Turning Diameter: 13.8 in (350mm)
- Max Turning Length: 13.4 in (340mm)
- Bar Capacity Diameter Main: 2 in (51mm)
Download Brochure
-

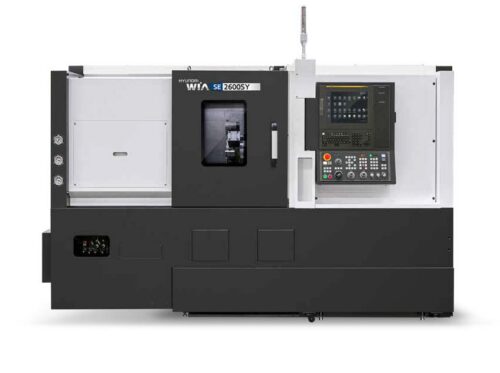

SE2600 Series
High Speed Horizontal Turning Center- 30° Slanted One-Piece Bed Structure with High Rigidity
- High Rigidity Roller Type LM Guideway on all Axis
- Hydraulic NC tailstock with position control (SE2600/M/Y)
- Multi-tasking operation with wedge type Y-axis structure (SE2600Y/SY/LY/LSY)
- Improved user convenience by applying the latest controller of FANUC
- Rapid Traverse Rate: 1,181 IPM (30m/min) X & Z
- Max Turning Diameter: 18.1”Ø (460mmØ)
- Max Turning Length: 26” (660mm)
- Max Bar Capacity: 3.2”Ø (81mmØ)
Download Brochure
-
HD2600
Maximize productivity and performance with box guide ways for heavy cutting- 3,500 RPM Spindle
- 10” Chuck, 12” Chuck Option
- 3.2” Bar Capacity
- 25.9” Max Turning Length
- 18.1” Max Turning Diameter
- Box Guide Ways
- Machine Weight: 12,787 lbs.
Download Brochure
-

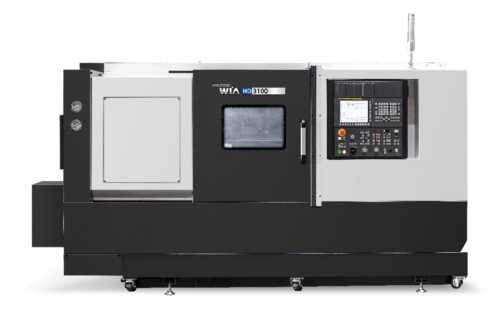

HD3100
Heavy Duty Cutting CNC Turning Center- Box guideways for heavy-duty cutting
- Stabilized unit structure to minimize thermal displacement
- User convenient structure for high productivity
- Excellent rapid traverse rate: 30m/min [1,181ipm] (Z-axis)
- High-rigidity and high-speed servo turret (Expanded disk width)
- Ergonomic design for convenient access to chuck and tool
- Max Turning Diameter: 19.7 in (500mm)
- Max Turning Length: 30.7 in (780mm)
- Bar Capacity Diameter Main: 3.2 in (81mm)
Download Brochure
-
LV8500L
High Productivity, Heavy Duty Vertical Turning Center- Highly Reliable Servo Turret
- No. of Tools: 12EA
- Indexing Time: 0.2 sec
- High Precision Spindle
- 15″ Touch-type FANUC 0i-MF PLUS control
- Box Guideways
- Double-Anchored Large diameter ball screws
