WIA Vertical Machining Centers

WIA Vertical Machining Centers are designed to deliver the precision, speed, and reliability today’s manufacturers need to stay competitive. With rigid cast iron construction, thermal stability, and high performance spindles, these machines produce superior surface finishes, tight tolerances, and consistent accuracy across demanding materials. Advanced controls, fast setup, rapid traverse rates, and high speed tool changes reduce cycle times and boost throughput without sacrificing quality.

With multi axis capability and operator friendly designs to simplify maintenance and reduce downtime, WIA vertical machining centers provide a high value solution that maximizes productivity, efficiency, and return on investment across any production environment.

  • KF-II Series

    State-of-the-art Vertical Machining Center with high-speed and large work space

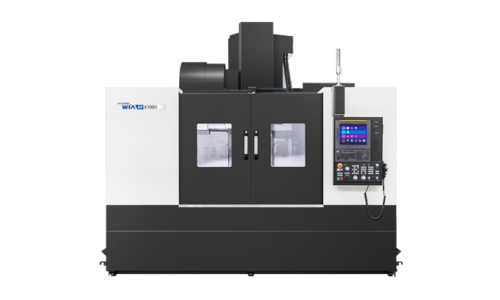

    WIA KF-6700II High Speed & Productivity Vertical Machining CenterThe KF-II Series vertical machining centers are a great improvement on the existing KF series, WIA’s steady seller. By providing high-precision machining through quality improvement of the spindle and customized machining through various spindle line-ups, this product will contribute to maximizing customer productivity.

    • High-precision machining by improved spindle quality
    • High-speed roller type LM guide in all axis
    • Enhanced chip processing capabilities by applying the upper-type conveyor
    • Various motors and columns provided for customized machining
    • Improved user convenience by applying the latest controller of FANUC

    Download Brochure

  • KF/5A

    Best Performance in the Class & Vertical Machining Center for 5-axis Machining

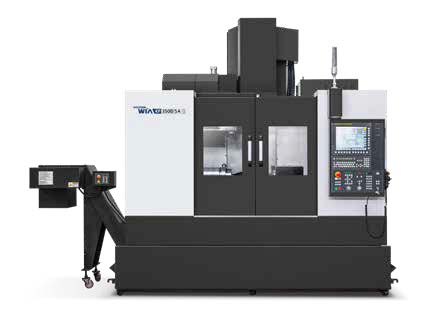

    KF-5A High Speed & Productivity Vertical Machining Center

    • 5-axis table to satisfy various machining needs
    • Column moving structure for automation system (KF7300/5A)
    • High speed built-in spindle for the utmost quality machining
    • All axis roller type LM guide for high speed & rigidity
    • Improved user convenience by applying the latest controller of FANUC

    Download Brochure

  • KF5600

    Designed with advanced technology, fast & versatile machining center that maximizes productivity

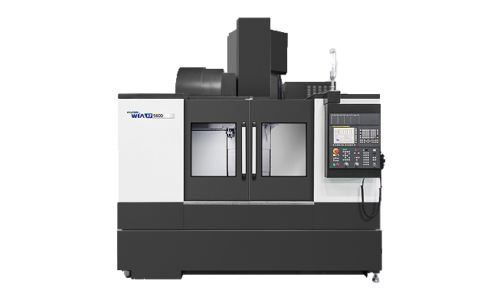

    WIA KF5600 Vertical Machining Center

    • Diverse spindle structure (direct-connection: 8K, 12K; built-in: 15K, 20K)
    • Increases strength through structural analysis
    • Expands machining domain with y-axis 560mm design
    • Shortens not-cutting time with rapid feeds (40/40/36m/min.)
    • Mould packages for optimum mould manufacturing (20K built-in)
    • Applied the latest HEIDENHAIN TNC 620 controller
  • KF7600L

    Vertical Machining Center with Best-in-class Performance & Wide Machining Area

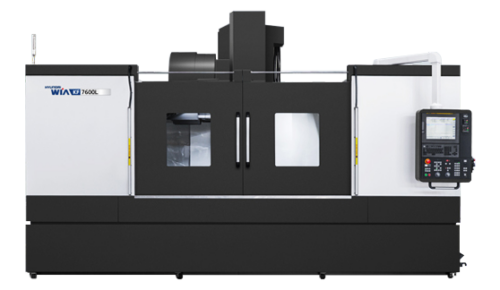

    WIA KF7600L Vertical Machining Center

    KF7600L, developed by applying the accumulated know-how and the latest technology of WIA, is a next-generation machine tool optimized for processing products with long material lengths through the application of a large and wide table.

    • Large table application for machining long parts
    • Wide structure of 2,100mm (82.7″) X-axis
    • High rigidity with Y-axis 4way design
    • Rapid traverse rate (X/Y/Z) : 30/30/24 m/min
    • High speed/High rigidity LM guide in all axes
    • Securing rigidity by applying 3-row ball screw support bearings
    • 2 way interior screw chip conveyor (Std.)
    • Bed flushing coolant, Upper-type chip conveyor standard application
