OKK Vertical Machining Centers
OKK vertical machining centers deliver a balance of rigidity and precision for both roughing and finishing operations:
VB-53a – Improve quality of machined surfaces and reduce machining time by minimizing residual vibration at the time of high-speed machining.
VM/R Series – Enhanced machining center that enables the machining of all types of materials, from aluminum to the difficult-to-cut materials like titanium.
VP Series – Bridge style design maximizes rigidity, speed and accuracy while still achieving exceptional chip evacuation, operator accessibility with minimal floor space.
KCV1000 – Flexible design that meets your changing needs, from Aircraft parts to Large LCD components.
OKK vertical machining centers are designed to maintain accuracy during aggressive machining and long production cycles. Their engineering philosophy focuses on structural rigidity, thermal control, and long service life.
-

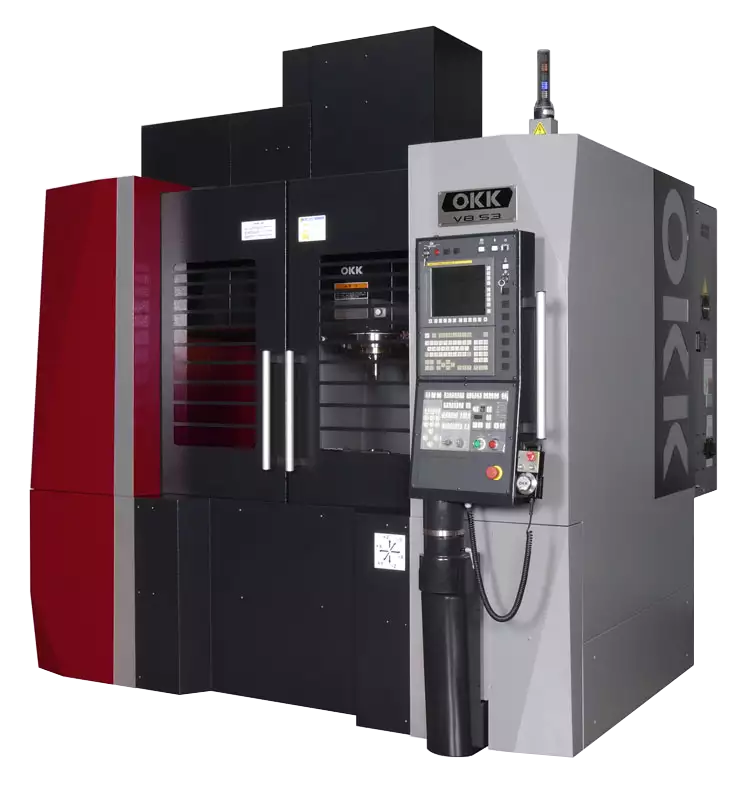

VB-53a
Vertical Machining Center that Realizes High-Speed and High-Quality Machining of Dies and Precision Parts
VB-53A incorporates the environmental thermal displacement correction “Soft Scale Cube” that responds to the changes in temperature in the general factories’ environment and supports stabilization of the machining accuracy.
Standard features include:
- Linear scale
- High resolution (small-lead) ball screw
- Hyper HQ Control
- Large capacity data server
-

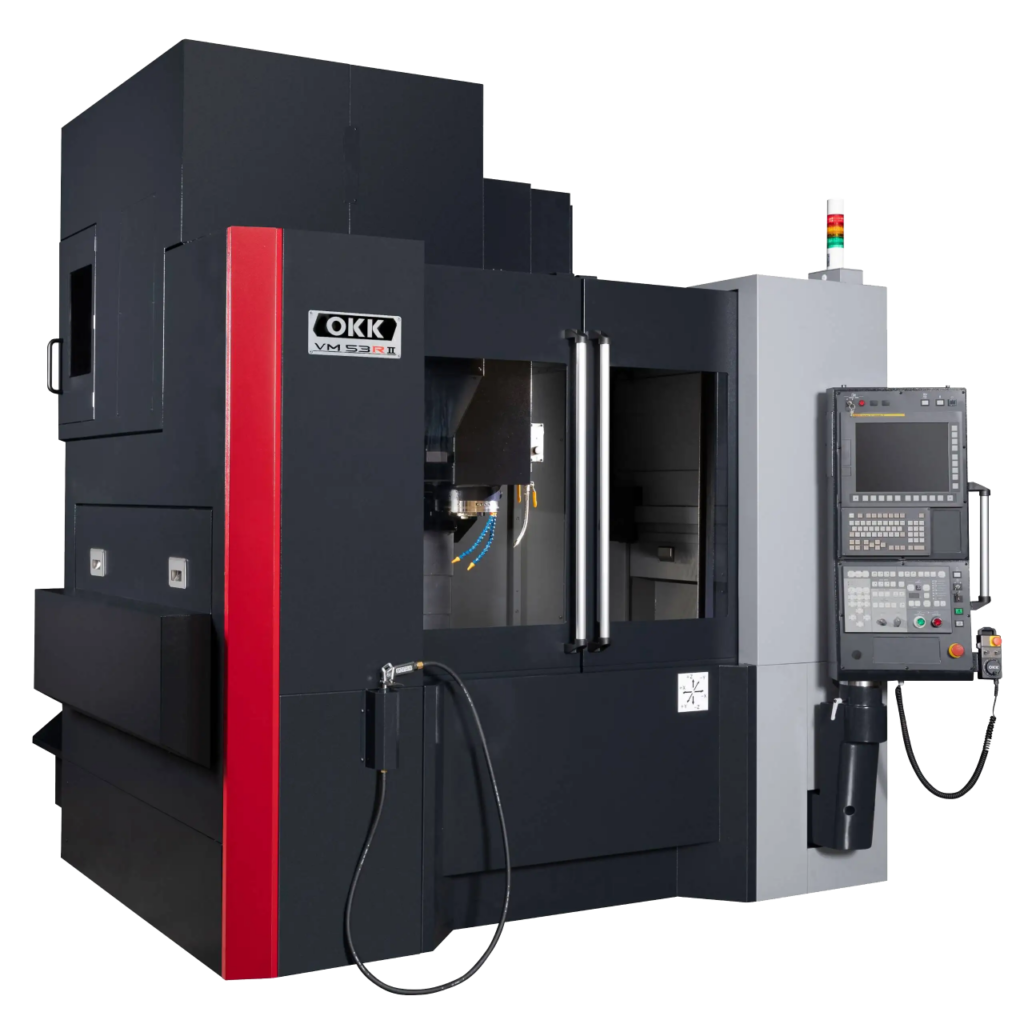

VM/R Series
Vertical Machining Center with Increased Rigidity of the Main Body and Spindle to Provide Increased Cutting Performance
VM/R Series also features X, Y & Z axes that utilize highly rigid and accurate box slide ways. This enables the machining of all types of materials from aluminum to the difficult-to-cut materials like titanium.Standard features include:
- Expanded working area
- Improved accessibility
- Increased main body rigidity
- Space saving design for economical use of floor space
- Coil-type chip conveyor
- Core chilled ball screws (VM76R and VM940R)
- Double anchored support system (VM76R and VM940R)
-

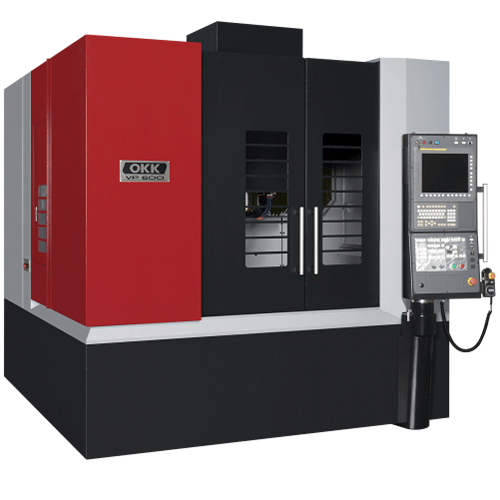

VP Series
OKK’s most efficient machine for manufacturing dies, jigs and tools that demand higher speed and precision along with high volume manufacturing that requires maximum productivity
Five models to choose from- Five models consisting of two standard models, and three 2APC models are available to meet specific needs of users.
High performance for improved productivity
- The VP Series offers the spindle rotating speed of 12000 rpm, rapid traverse speed of 48 m/min (1890 ipm) for X and Y axes and 36 m/min (1418 ipm) for Z axis, and tool change time (tool-to-tool) of 1.2 seconds.
New structure and new technologies for enhanced machining accuracy
- Equipped with linear roller guides.
- Improved fine-motion feed control and circular cutting accuracy.
- Minimal thermal displacement.
New and advanced European design
- European-standard style for superb operability and workability.
-

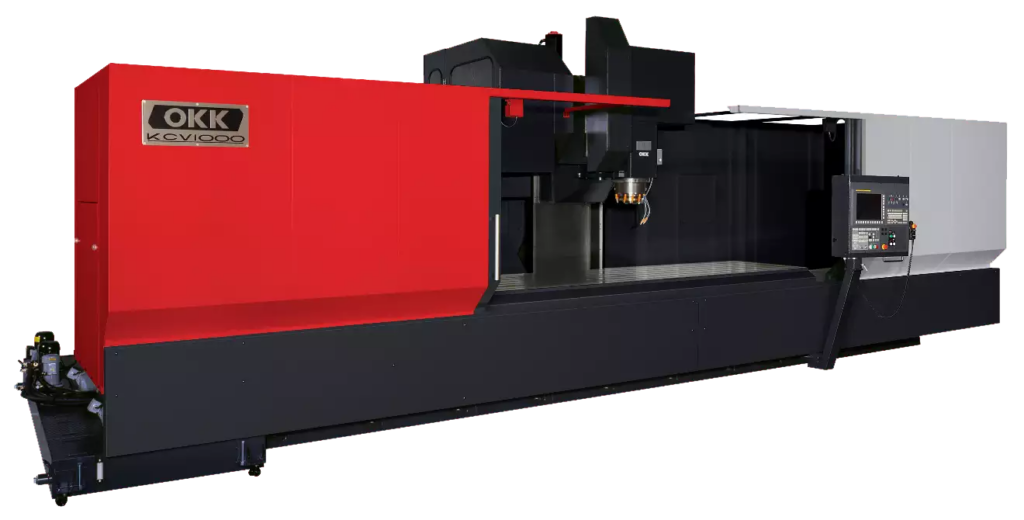

KCV1000
From Aircraft Parts to Large LCD Components, its Flexible Design Meets the Users Needs
Conquering a wide range of applications, from general to long work-pieces- Exceptional productivity with large strokes
- In a continuous pursuit of high rigidity and high speed processing, KCV is the embodiment of overall efficient operations
- A highly rigid machine body design produces powerful cutting performance
- The traverse column provides excellent accessibility, operability, and extensibility
- An advanced controller facilitates the finest quality throughput high speed and rapid response machining
Standard features include:
- Space saving design for economical use of floor space
- Highly rigid machine structure produces highly accurate processing
- Thorough measures to control thermal displacement
- Operator friendly traversing column
- Highly rigid high-speed feed systems
- Core chilled ball screws
- Double anchored support system
- Coil-type chip conveyor
