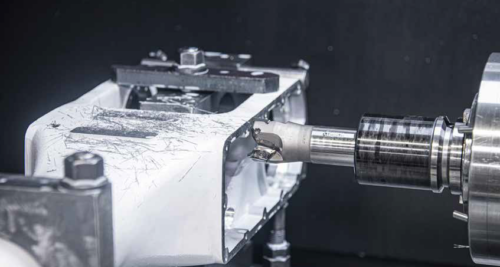

WIA Horizontal Machining Centers

WIA Horizontal Machining Centers deliver the power, speed, and reliability manufacturers demand to stay competitive. Built with rigid construction, high-torque spindles, and advanced chip evacuation, these machines drive faster cycle times, superior surface finishes, and consistent precision—even in high volume, heavy cut applications. Intuitive controls, automation-ready designs, and flexible configurations streamline production while reducing downtime, labor, and operating costs.

With proven durability, low maintenance requirements, and high uptime, WIA horizontal machining centers are a smart investment for shops looking to boost throughput, maximize ROI, and outperform on the shop floor.

  • HS4000 II

    High Speed & Productivity Horizontal Machining Center

    WIA HS5000 II Horizontal Machining CenterThe HS4000II Series offer high-speed feeding system, high-speed spindle, and high-speed ATC and APC for reduction of non-cutting time to guarantee global leading level of productivity.

    • Pallet Size (L×W) mm(in): 2-400×400 (2-15.7″×15.7″)
    • Maximum Load Capacity kg(lb): 2-400 (2-881.8)
    • Spindle Taper: BBT40 [HSK-A63]
    • Spindle Speed r/min: 15,000 [15,000 High-Torque] [20,000]
    • Spindle Power (Max./Cont.) kW(HP): 30/18.5 (40/25) [37/22 (50/30)] [37/18.5 (50/25)]
    • Number of Tools EA: Ring : 40 [60] [Chain : 90, 120] [Matrix : 240]
    • Travel (X/Y/Z) mm(in) 560/640/660 (22″/25.2″/26″)
    • Rapid Traverse Rate (X/Y/Z) m/min 60/60/60

    Download Brochure

  • HS5000 II

    High Speed & Productivity Horizontal Machining Center

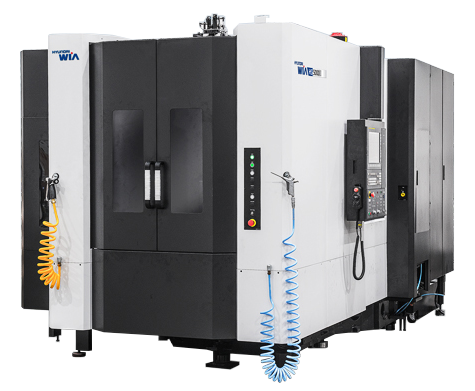

    WIA HS5000 II Horizontal Machining Center

    The HS5000II Series offer high-speed feeding system, high-speed spindle, and high-speed ATC and APC for reduction of non-cutting time to guarantee global leading level of productivity.

    • Pallet Size (L×W) mm(in): 2-500×500 (2-19.7″×19.7″)
    • Maximum Load Capacity kg(lb): 2-500 (2-1,102)
    • Spindle Taper: BBT40 [HSK-A63]
    • Spindle Speed r/min: 15,000 [15,000 High-Torque] [20,000]
    • Spindle Power (Max./Cont.) kW(HP): 30/18.5 (40/25) [37/22 (50/30)] [37/18.5 (50/25)]
    • Number of Tools EA: Ring : 40 [60] [Chain : 90, 120] [Matrix : 240]
    • Travel (X/Y/Z) mm(in): 730/730/880 (28.7″/28.7″/34.6″)
    • Rapid Traverse Rate (X/Y/Z) m/min 60/60/60

    Download Brochure

  • HS6300 II

    Next-Generation High-speed Horizontal Machining Center

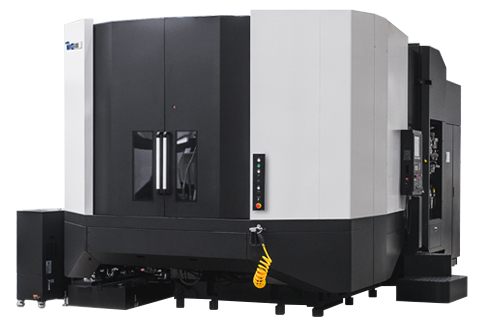

    WIA HS6300 II Horizontal Machining CenterHS6300 II, designed by WIA machine tools with years of expertise and the latest technology, provides high speed, high performance and maximum productivity.

    • Pallet Size (L×W) mm(in): 2-630×630 (24.8″×24.8″)
    • Max. Load Capacity kg(lb): 2-1,500 (3,307)
    • Spindle Taper: BBT50 [HSK-A100]
    • Spindle Speed r/min: 10,000 [15,000] [6,000]
    • Spindle Output (Max./Cont.) kW(HP): 45/25 (60/33.5) [37/30 (50/40)] [55/30 (74/40)]
    • No. of Tools EA: 40 [60, 90, 120, 150] [Matrix : 240 ~]
    • Travel (X/Y/Z) mm(in): 1,050/900/1,000 (41.3″/35.4″/39.4″)
    • Rapid Traverse Rate (X/Y/Z) m/min(ipm): 60/60/60 (2,362/2,362/2,362)
  • HS8000 II

    Next-Generation High-speed Horizontal Machining Center

    WIA HS6300 II Horizontal Machining CenterHS8000 II, designed by WIA machine tools with years of expertise and the latest technology, provides high speed, high performance and maximum productivity.

    • Pallet Size (L×W) mm(in): 2-800×800 (31.5″×31.5″)
    • Max. Load Capacity kg(lb): 2-2,000 (4,409)
    • Spindle Taper: BBT50 [HSK-A100]
    • Spindle Speed r/min: 10,000 [15,000] [6,000]
    • Spindle Output (Max./Cont.) kW(HP): 45/25 (60/33.5) [37/30 (50/40)] [55/30 (74/40)]
    • No. of Tools EA: 40 [60, 90, 120, 150] [Matrix : 240 ~]
    • Travel (X/Y/Z) mm(in): 1,400/1,200/1,370 (55.1″/47.2″/53.9″)
    • Rapid Traverse Rate (X/Y/Z) m/min(ipm): 50/50/50 (1,969/1,969/1,969)
