Ultra-Precision 5-Axis Milling Machines

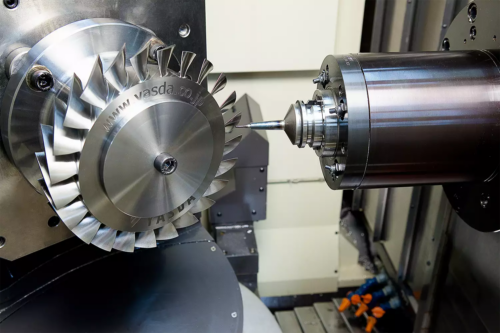

Yasda 5 Axis Milling Machines5-axis milling machines from Yasda deliver extreme contouring accuracy for micro-milling, mold work, aerospace features, and medical components. Their stability and precision significantly outperform standard platforms.

Benefits of Yasda 5-Axis Milling Machines

Choosing Yasda is an investment in process capability, repeatability, and long-term machining confidence.

Micron-Level Accuracy on Complex Parts – Yasda machines routinely achieve tolerances that many machining centers cannot approach. This capability is essential for optical tooling, high-precision dies, aerospace components, and medical devices.

Superior Surface Finish for Mold & Die Applications – Yasda’s spindle design, axis geometry, and vibration control produce exceptional surface finishes. This often reduces or eliminates secondary polishing operations, particularly in Die & Mold manufacturing.

Stable Accuracy During Extended Machining Cycles – Thermal stability allows Yasda machines to maintain tight tolerances during multi-hour machining cycles, deep micro-milling operations, and continuous production schedules.

Long-Term CNC Machine Performance and ROI – Because Yasda machines retain accuracy over decades, manufacturers benefit from reduced scrap, fewer rework cycles, longer tool life, and sustained process capability. This drives strong long-term ROI.

Precision Control for Complex Geometry – Yasda machining centers excel at producing micro features, sculpted 3D surfaces, multi-face precision geometry, tooling inserts, and fine mechanical details.

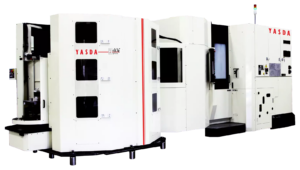

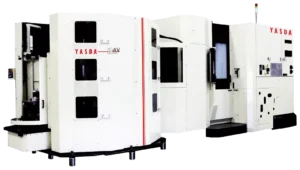

  • H40i

    Delivers improved and versatile machining performance with its 5-faces indexing application and complex simultaneous 5-axis machining applications.

    • Yasda H40i 5-Axis Horizontal Machining Center5-Axis High Precision Horizontal Machining Center
    • High Speed Direct Drive Rotary Axes
    • Self-contained Multi Pallet Stacking System
    • 20000 rpm Spindle Speed
    • Space-Saving Footprint
    • Rigid Machine Structure for Machining Various Material Types
    • Scale Feedback for Precise Positioning
    • Probing Systems

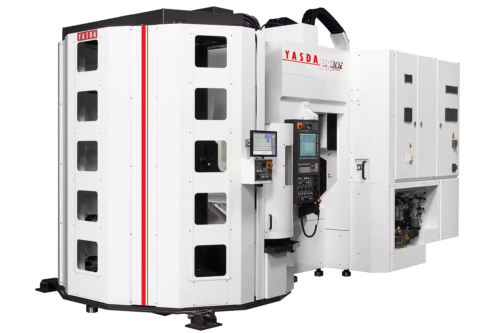

  • PX30i

    Outstanding in versatile 5-axis machining applications, precision parts, drilling, face milling, boring, and milling.

    • Yasda PX30i 5-Axis Machining Center5 Axis High Precision Vertical Machining Center
    • Large Work Envelope
    • High Torque Spindle
    • High Speed Direct Drive Rotary Axes
    • Self-contained Multi Pallet Stacking System
    • Space Saving Footprint
    • System 3R Coupling for Pallet Clamping
    • Rigid Machine Structure for Machining Various Material Types
    • Optical Scale Feedback for Precise Positioning
    • Probing Systems

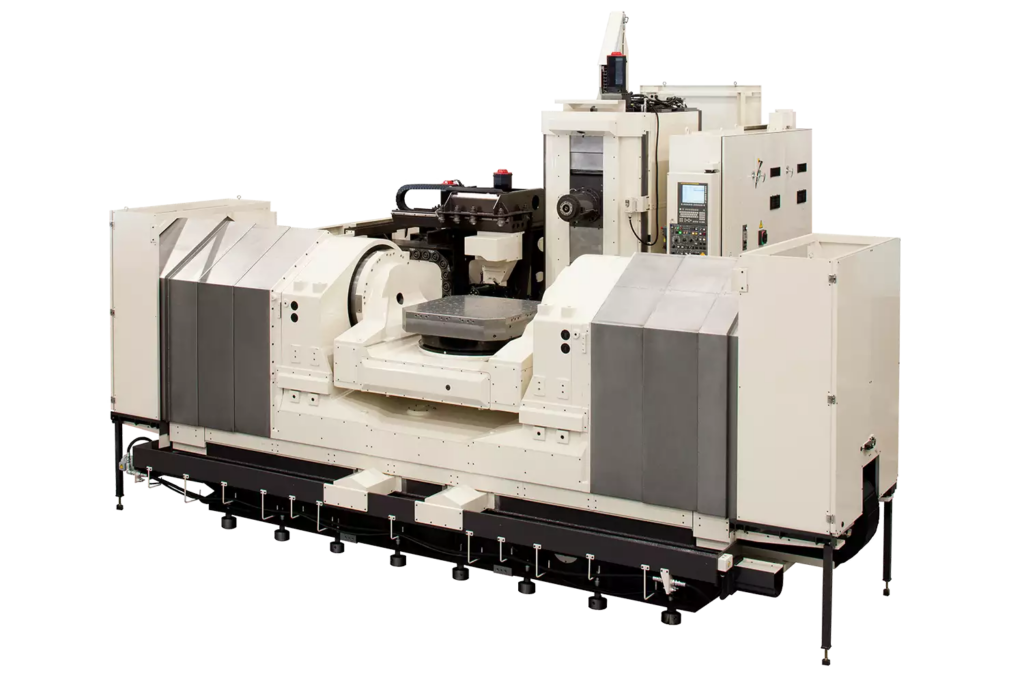

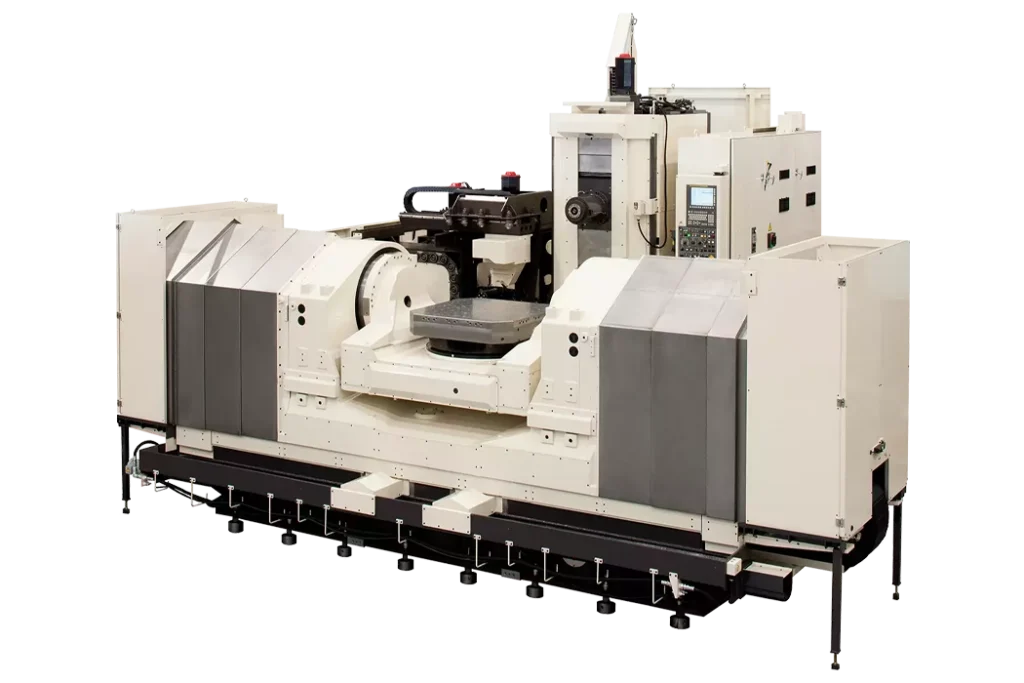

  • YBM 10T-100TT

    Developed for performing stable high-precision processing with a high degree of efficiency as a theme

    • YBM 10T-100TT 5-axis machining centerPreload self-adjusting spindle mounted. Both heavy duty cutting at low spindle speed and highly accurate rotation with low-heat generation at high spindle speed are achieved
    • A two-motor torque tandem control spindle (option) mounted for YBM10T-100TT
    • Thermal distortion stabilized system equipped. This enables stable high-precision processing for an extended period of time by minimizing the machine-body thermal distortion caused by the factory environment
    • YASDA’s unique advanced function “HAS-3” equipped. This enables extremely high-precision processing at high speed by accurately reflecting NC data
    • High-precision five-axis processing support function “i-CAL” equipped. This enables high-precision and high-grade five-axis processing by accurately searching for the central coordinates of the important “rotation axis” and “spindle” which exert influence on processing accuracy and automatically sets them
    • H-frame Z-axis steel bed for heat distribution for long term accuracy
    • Double walled and ribbed Y-axis column with minimal axial yaw
    • 72 tooth curvic coupling pallet clamping with air blast
    • Rigid machine structure for machining various material types
    • Optical scale feedback for precise positioning
    • Probing Systems

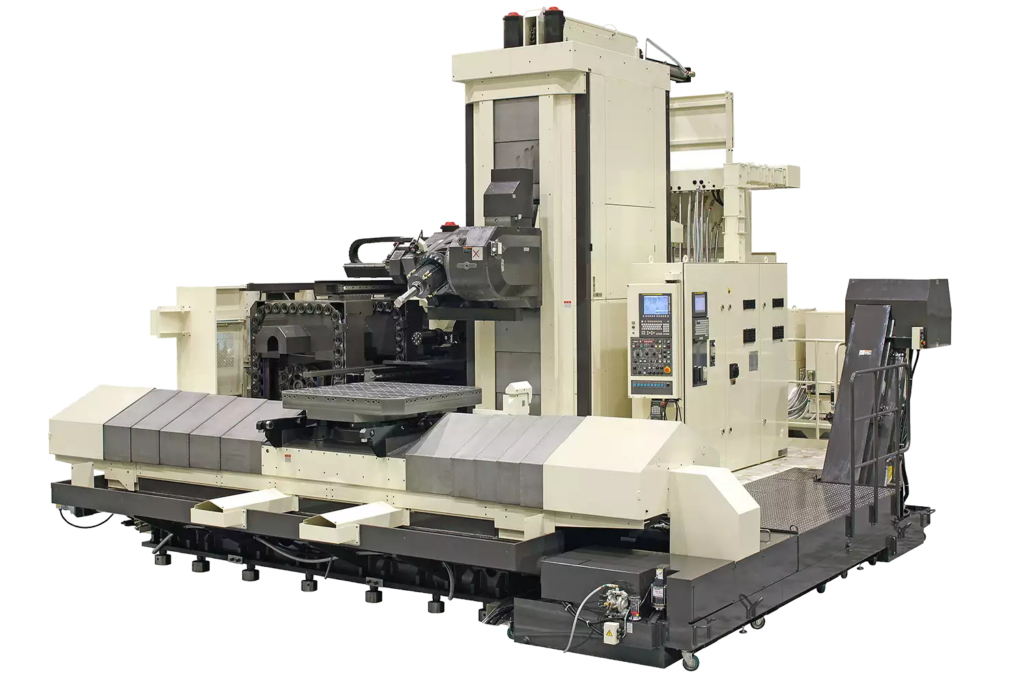

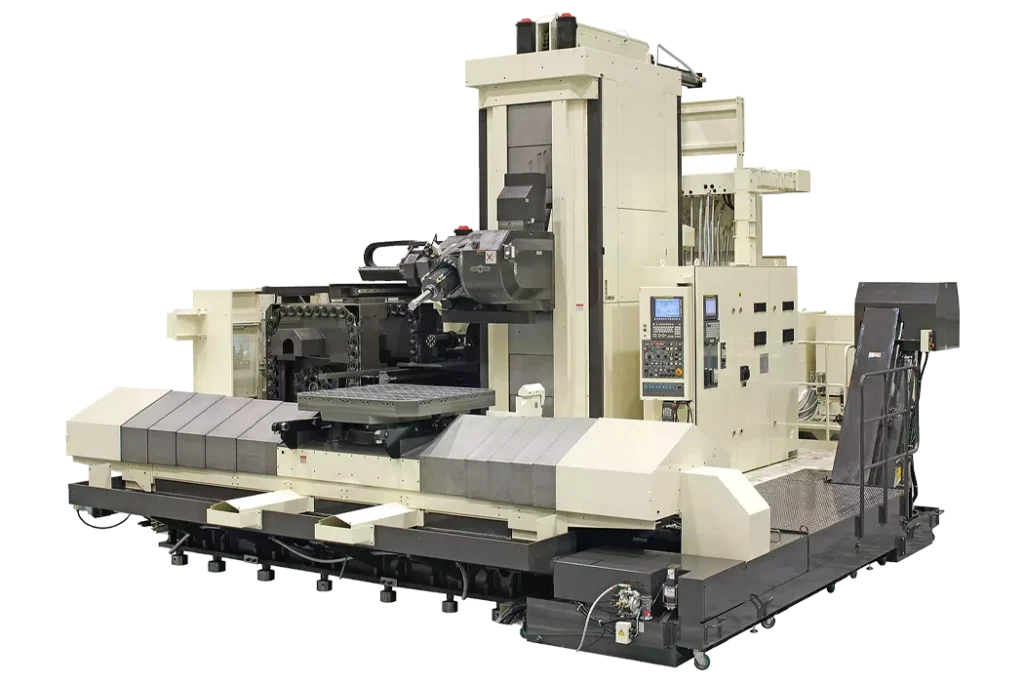

  • YBM 10T-TH

    Heavy duty machine which provides high-speed and high-precision processing for the world’s heaviest work (5 tons)

    • YBM 10T-TH heavy duty 5-axis machinePreload Self-adjusting Spindle Mounted. Both heavy duty cutting at low spindle speed and highly accurate rotation with low-heat generation at high spindle speed are achieved
    • A Two-motor Torque Tandem Control Spindle (option) mounted for YBM10T-100TT
    • Thermal Distortion Stabilized System Equipped. This enables stable high-precision processing for an extended period of time by minimizing the machine-body thermal distortion caused by the factory environment
    • YASDA’s Unique Advanced Function “HAS-3” Equipped. This enables extremely high-precision processing at high speed by accurately reflecting NC data
    • High-precision Five-axis Processing Support Function “i-CAL” Equipped. This enables high-precision and high-grade five-axis processing by accurately searching for the central coordinates of the important “rotation axis” and “spindle” which exert influence on processing accuracy and automatically sets them
    • High Precision Pallet with High Rigidity
    • Torque Tandem Control Spindle
    • Self-adjusting Spindle Equipped with Innovative Functions
    • High Rigidity, High Precision Drive and Guide System

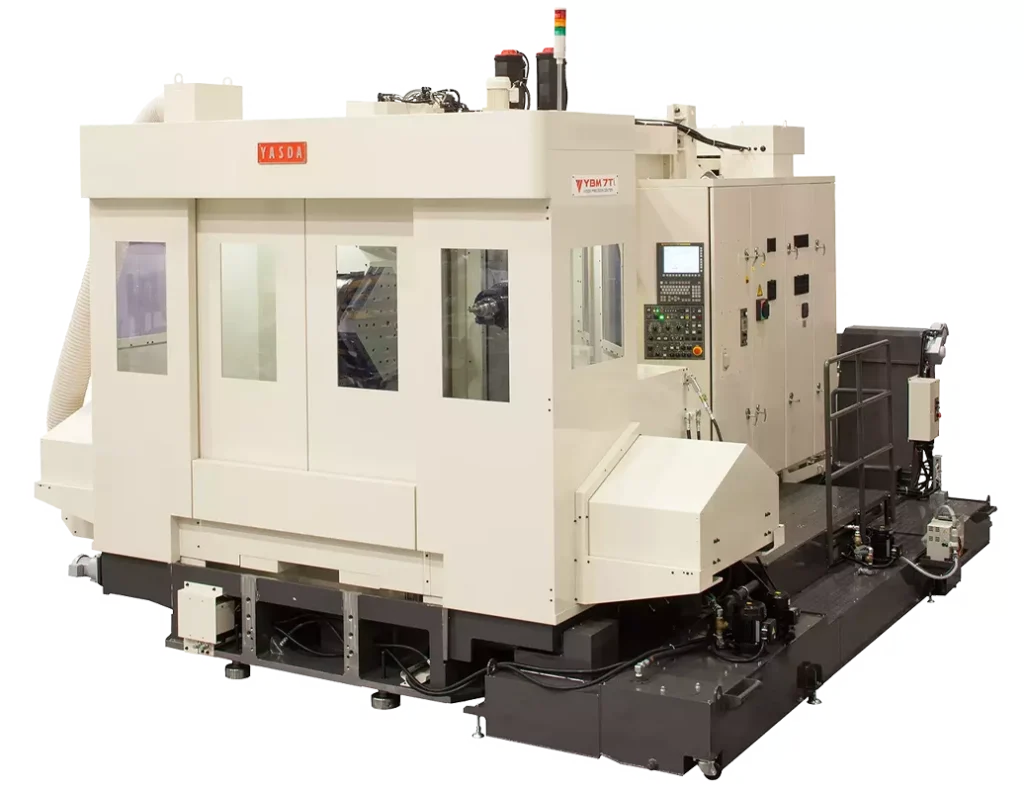

  • YBM 7Ti

    Highly acclaimed by manufacturers all over the world for their high-precision turning and boring performance

    • YBM 7Ti precision machining centersHigh Speed and High Precision Positioning with Hybrid Box Guide Ways
    • Thermal Distortion Stabilizing Systems: YASDA’s countermeasures reduce thermal influence and maintain high rigidity and high precision, for continuous high-speed machining
    • High Performance Spindle with Pre-load Self-adjusting System: YASDA’s unsurpassed spindle technology realizes high precision and high quality machining through the entire speed range
    • Highly Rigid Construction
    • Direct Drive Spindle with Preload Self-adjusting System
    • Centrally positioned Spindle Head for Higher Positioning Accuracy
    • Table Indexing and Paller
    • Pallet Chucking Mechanism for Unsurpassed Repeatability and Rigidity
    • Automatic Tool Changer for Heavy Tools
    • Tool Holder Cleaning Device with Brush and Blower

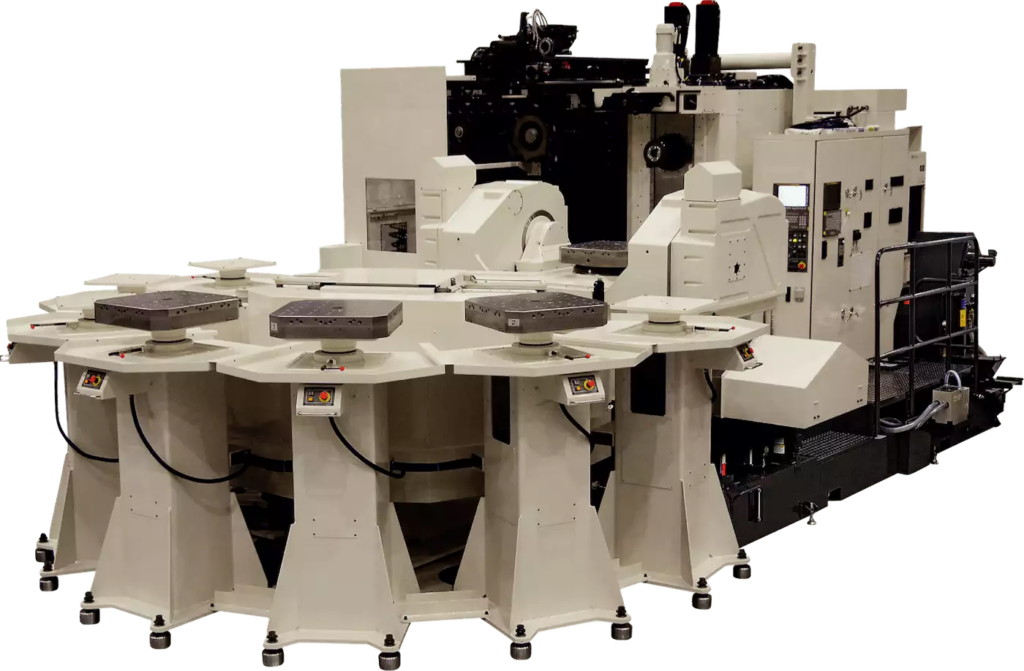

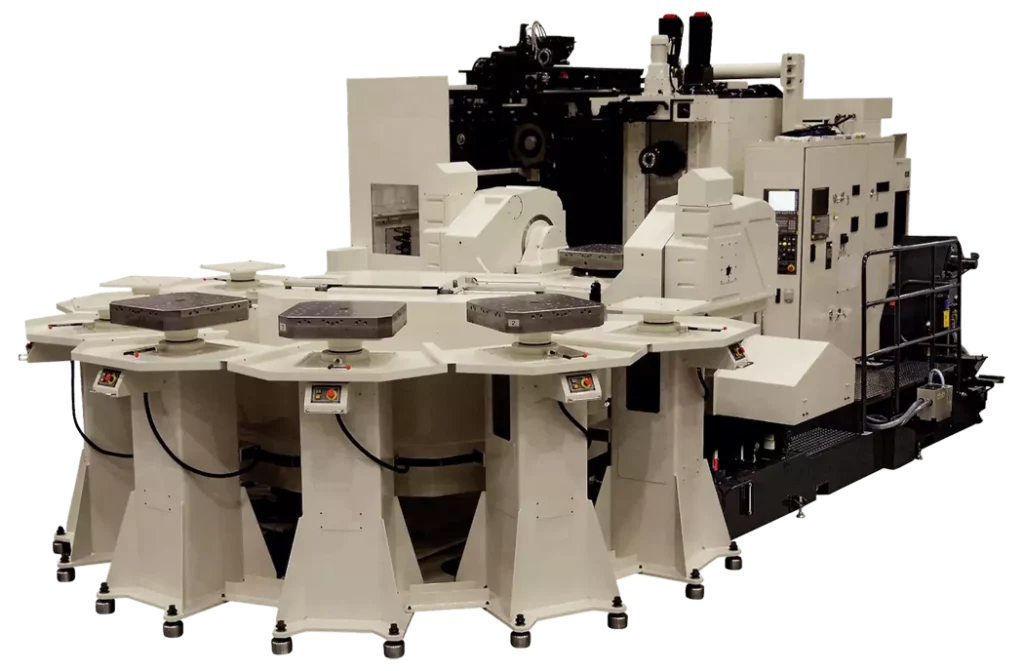

  • YBM 8T-TT

    High accuracy 5-axis machining with high speed and high accuracy positioning

    • YBM 8T-TT 5-axis machining centerTrunnion Style 5 Axis Horizontal Machining Center
    • Through Hardened (HR60) Box Guide Ways
    • Optical Scale Feedback on XYZ Axis
    • Twin Ball Screws
    • Self-adjusting Spindle Preload System
    • Curvic Coupled Pallet Clamping with Air Blast
    • Thermal Distortion Stabilization
    • H frame Z Axis Steel Bed for Heat Distribution for Long Term Accuracy
    • Double Walled and Ribbed Y Axis Column with Minimal Axial Yaw
    • 72 Tooth Curvic Coupling Pallet Clamping with Air Blast
    • Rigid Machine Structure for Machining Various Material Types
    • Optical Scale Feedback for Precise Positioning.
    • Probing Systems

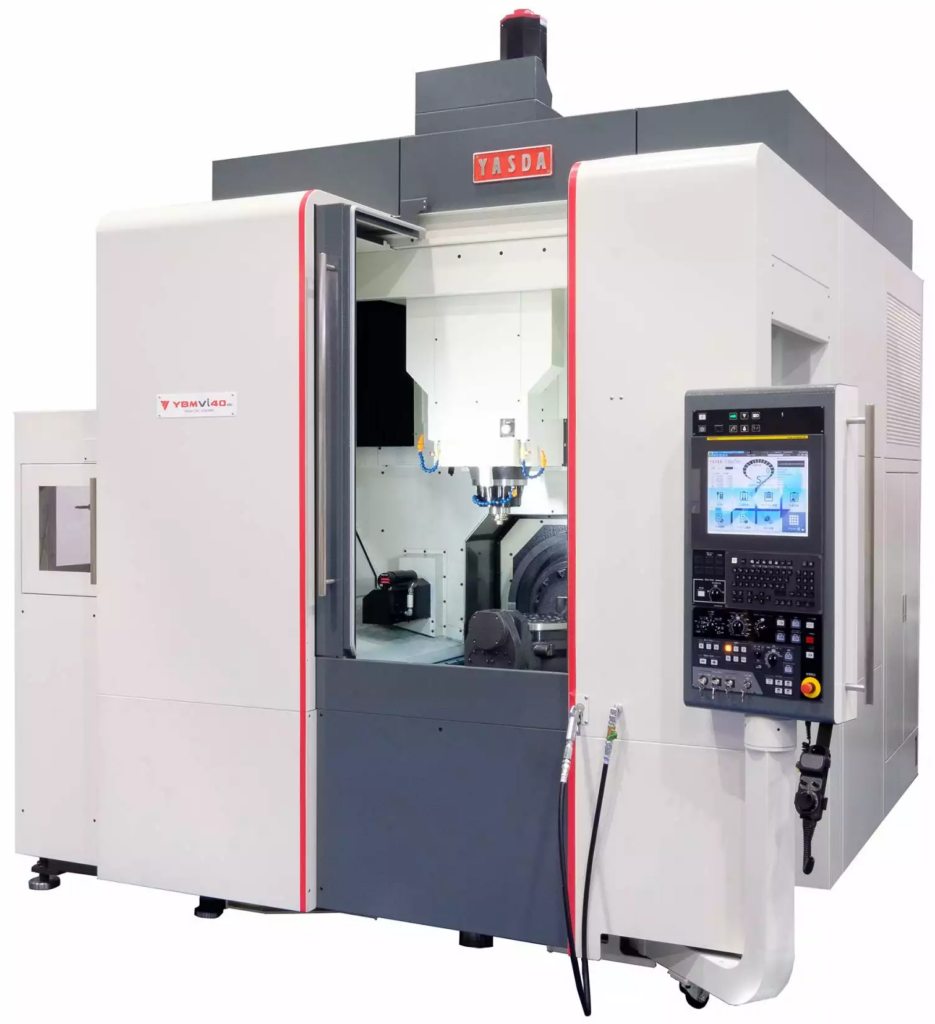

  • YBM Vi40

    Highly accurate, rigid, and reliable solution for 5-axis die and mold making

    • YBM Vi40 5-axis machineB/C Axis Tilt Rotary Table
    • Direct Drive Spindle W/ Self-Adjusting Preload System
    • Through Hardened (HR60) Box Guide Ways
    • Optical Scale Feedback
    • Symmetrical Bridge Structure
    • Advanced Thermal Displacement
    • 5 Sided Machining with a Single Set-up
    • Rigid Structure Designed for Hard Milling Die Mold Applications
    • Dramatically Reduces the Number of Process Steps and Time
    • Machine Structure is Designed for High-precision and High Surface Part Quality
    • Probing Systems

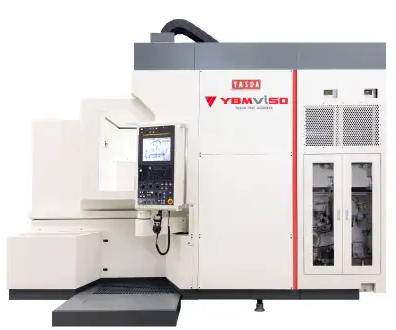

  • YBM Vi50

    5-axis machining enter for complicated large parts, dies, and molds

    • Vi50 5-axis machining centerWhile based on traditional structure, YBM Vi50 adapts slant construction for its Y-axis guideways, which minimizes spindle overhang and saddle weight and ensures the straightness of Y-axis. This approach enhances dynamic accuracy by optimizing the low center of gravity of the bridge and the lighter saddle.
    • YASDA’s in house built high-precision and rigid rotary table equipped with a DD (Direct Drive) motor enables simultaneous 5-axis machining as well as hard milling. Minimizing the effect of indexing error on machining accuracy by positioning the table surface closer to A-axis’s center of rotation.
    • Measures against thermal displacement have been developed based on YASDA’s long experience and technological advancements. YASDA’s thermal distortion stabilizing system blocks rapid thermal distortion and maintains stable high precision machining. To minimize thermal displacement caused by 5-axis movement, a dedicated temperature control unit is utilized for the A/C table.
