ZEISS O-DETECT Optical Measuring Machine

  • Overview
    O-DETECT 322 and 543

    Left: ZEISS O-DETECT 3/2/2 (300 x 200 x 200 mm³)
    Right: ZEISS O-DETECT 5/4/3 (500 x 400 x 300 mm³)

    Easily capture things that are better left untouched

    ZEISS O-DETECT

    Intuitive operation, high-quality camera and flexible lighting for precise measurement in an instant. Suitable for a wide variety of components, but mainly for those that are best left untouched. Discover the new generation of optical metrology: ZEISS O-DETECT.

    Your advantages:

    • Excellent optics
    • Versatile and easy to upgrade
    • Simple part navigation and visualization
    • Stable precision
    • Intuitive and user-friendly software
    • Professional and actionable reports
  • Specs

    Technical Data for ZEISS O-DETECT

    O-DETECT 3/2/2 O-DETECT 5/4/3
    Camera ZEISS INVENTA D1 ZEISS INVENTA D1
    Measuring volume 300 x 200 x 200 mm3 500 x 400 x 300 mm3
    Field of view 8.4 x 7.0 mm2 8.4 x 7.0 mm2
    Length measurement error MPE (EU) in 2D 1.9 µm + L/150 µm 1.9 µm + L/150 µm
    in 3D 2.4 µm + L/150 µm 2.4 µm + L/150 µm
    Software ZEISS CALYPSO ZEISS CALYPSO

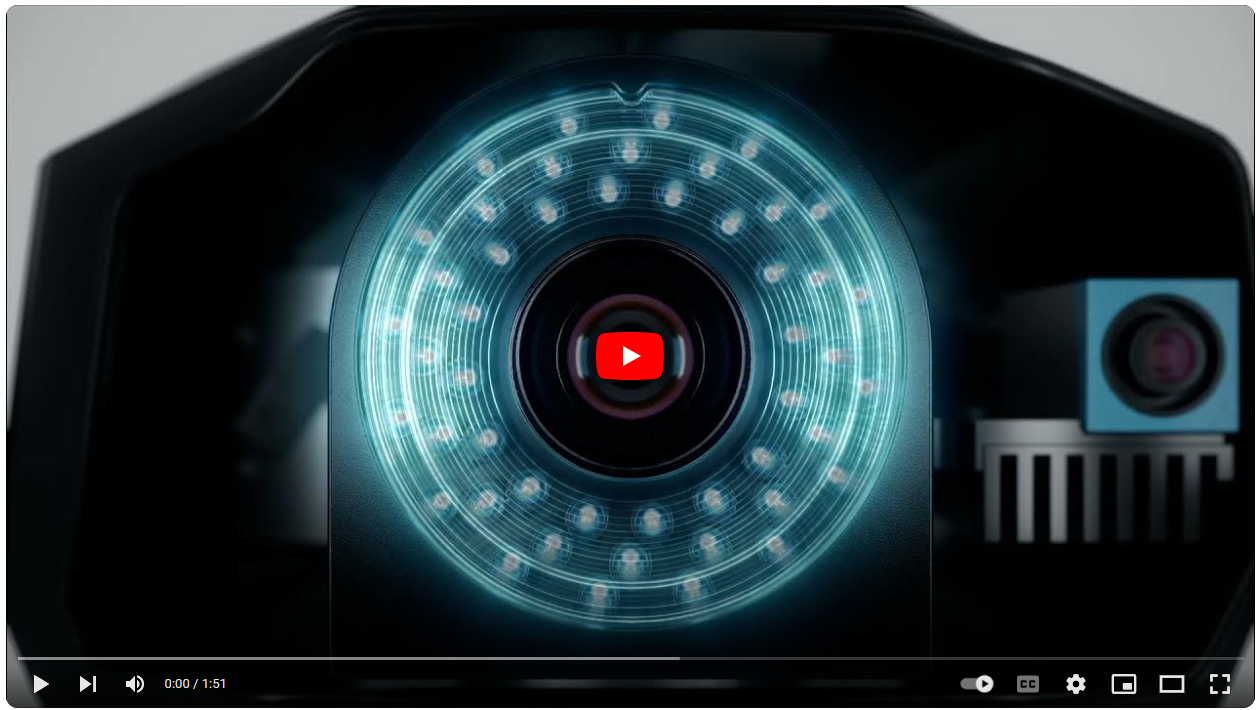

  • Video
