Master3DGage portable CMM

Master3DGage PCMM for 3D inspection, geometric dimensioning and tolerancing (GD&T) and first article inspections.

Verisurf Software, Inc and select Mastercam® resellers have collaborated to bring you Master3DGage™ – an affordable and portable rapid 3D inspection solution that enables machine shops to significantly increase production and improve part quality. The complete hardware/software solution automates the 3D inspection process and quickly verifies manufactured parts directly to 3D CAD models.

Master3DGage™ integrates a six-axis Portable CMM – one of the World’s most accurate – with Verisurf’s advanced 3D model-based inspection software. This complete solution delivers a precise, fully automated digital process to inspect directly to CAD models anywhere on the shop floor. First article inspections are completed in minutes.

Master3DGage’s handy, quick-mount CMM system allows easy setup for on-demand measurement and inspections anywhere on the shop floor. Use Master3DGage™ right on your machine to verify parts quickly, in process, without removing or repositioning them.

Master3DGage™ makes any 3D inspection easy

Finish typical inspections, such as blueprint, in-process, incoming, first article and final inspections, quickly—with surprising ease and accuracy. Measurement reports are generated automatically, in industry standard formats, so you can know immediately whether parts are in or out of tolerance.

Align, Inspect, Report—simple, repeatable three-step process

(Click on thumbnail to enlarge)

3D - Align
3D - Align

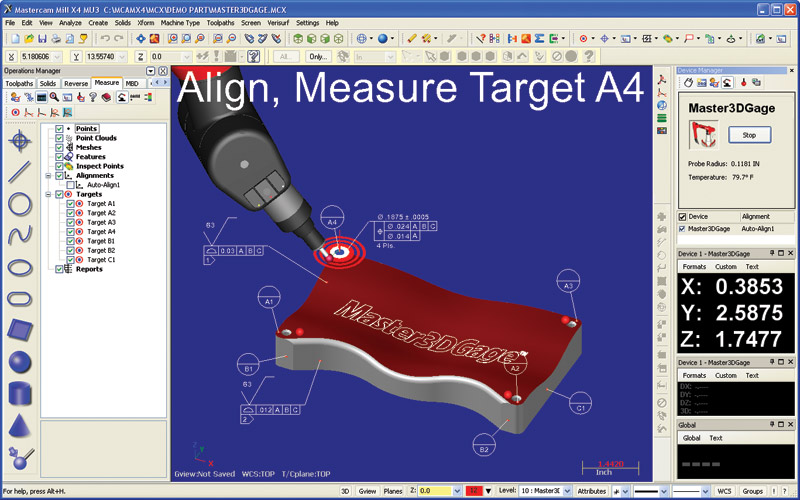

Align: Quickly automate alignment by picking targets on CAD features (datums). Run the routine by probing each target on the part. The Master3DGage™ software walks you through the process with simple, step-by-step instructions.

3D - Inspect
3D - Inspect

Inspect: Inspect and view in real time by manually probing or by following automated inspection plans. Easily measure features from precise single points to point clouds. Powerful software technology displays variance between the 3D model and the part.

3D - Report
3D - Report

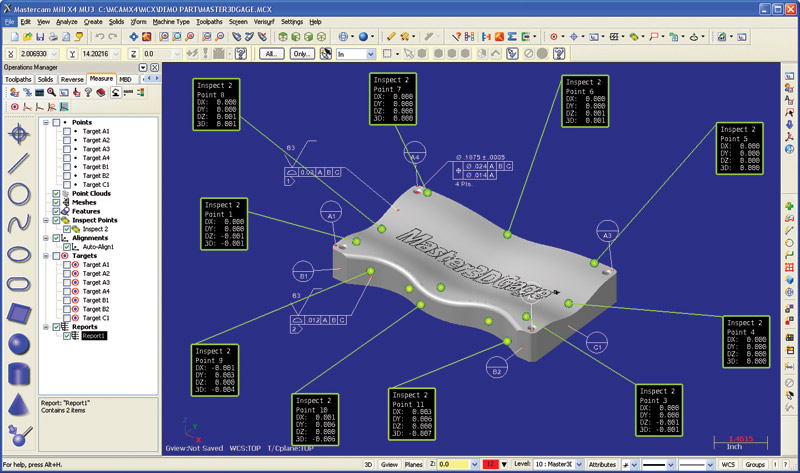

Report: Using the 3D CAD model as the nominal definition, the system quickly generates custom reports in industry standard formats, including GD&T constraints and color deviation maps, for clear, practical analysis.

Ultra–accurate, six-axis metrology for precise 3D inspections
Ultra–accurate, six-axis metrology for precise 3D inspections

No metrology experience needed

With Master3DGage™, simplicity and ease of use are designed right in, so that even those with little or no metrology experience can get up to speed quickly. Controls and interface are easy and straightforward, so users spend less time scrolling through screens and more time making quality parts.

Ultra–accurate, six-axis metrology for precise 3D inspections

Master3DGage™ features an integrated Hexagon Metrology, six-axis CMM—among the world’s most accurate—offering a remarkable measuring volume of just 1.2m. This feature provides superior dimensional control of parts, tooling, molds, castings and more.

Powered by Verisurf’s model-based 3D inspection software

Powered by Verisurf’s world-class, model-based software, Master3DGage™ maintains precise digital workflow, from the start of your inspection to the end.

The ability to precisely pinpoint and resolve quality issues in real time helps reduce scrap, improve efficiency and boost the productivity of every machine.

Bottom line? With the new Master3DGage™ you’ll do more work, with less rework—because both process and results are repeatable, even during high-volume production.

OptiPro is an authorized dealer of Master3DGage in New York State

OptiPro is an exclusive distributor of Master3DGage in Upstate NY, including Buffalo, Niagara Falls, Rochester, Syracuse, Binghamton, Utica, Schenectady, Albany, Watertown, Potsdam, Plattsburgh, and everywhere in between. For more information or to schedule a demonstration, please contact OptiPro by calling 585-265-0160, or send email to Vince Cannarozzo, OptiPro's Master3DGage specialist, at vincec@optipro.com.

Master3DGage Technical Specifications >>
