Optical Fabrication Equipment
OptiPro specializes in building computer controlled grinding and polishing machines for manufacturing precision optics. In addition, OptiPro designs and produces several unique metrology instruments for measuring spherical, aspheric and freeform optical components. OptiPro has the optical fabrication equipment to meet your needs, including: the PRO Series (PRO 80 GTS, PRO 80P, PRO 80 UFF, and PRO Tower), CNC optical machining centers (eSX 150, eSX 300, eSX 400, SXL 500), spherical high-speed polishing (ePX 200), sub-aperture asphere and freeform polishing (UltraForm® Finishing or UFF™), asphere measurement system (OptiTrace 5000), non-contact surface profilometers (UltraSurf™ 4X and 5X) and ultra accurate spherometers (UltraCURV).
|
|
|
 |
PRO 80 GTS
The PRO 80 GTS (Grinder, Twin-Spindle) is capable of grinding spherical lenses in optimal cycle times with high precision. The PRO 80 GTS is designed with a vibration isolated "rock-solid" granite core to ensure ultimate precision, thermal stability, and consistent part-to-part accuracy. The unique modular concept packs a lot of capability into a compact footprint. Integrated is OptiPro's newly developed powerful CNC graphical user interface making them easy to use for even complex optical components. |
PRO 80 GTS >> |
|
|
|
 |
PRO 80P
The PRO 80P is a high speed spherical lens polisher for workpieces up to 80 mm in diameter. The PRO 80P is designed with a vibration isolated "rock-solid" granite core to ensure ultimate precision, thermal stability, and consistent part-to-part accuracy. The unique modular concept packs a lot of capability into a compact footprint. With OptiPro's newly developed powerful CNC graphical user interface, fast setups and cycle times are achieved with the PRO 80P yielding high production of spherical optics. |
PRO 80P >> |
|
|
|
 |
PRO 80 UFF

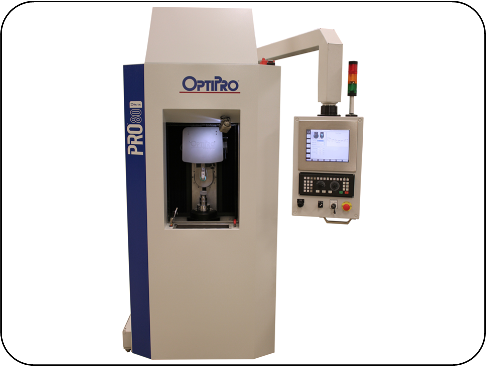

The PRO 80 UFF utilizes OptiPro's patented sub-aperture polishing system called UltraForm Finishing (UFF). The PRO 80 UFF can UltraForm Finish planos, spheres, and aspheres from 10-80 mm in diameter, with freeform fabrication as an optional add-on. With bound and loose abrasives, the PRO 80 UFF can polish a wide range of materials, including optical glasses, optical ceramics, and stainless steel injection mold inserts. |
PRO 80 UFF >> |
|
|
|
 |
PRO Tower
The PRO Tower vertical interferometer is capable of measuring the wavefront and radius of optics that are up to 300 mm in diameter. It has a motorized stage with 1,000 mm of travel and is available with a CGH for asphere metrology. This robust platform is great for either fast in-process metrology or final metrology. |
PRO Tower >> |
|
|
|
 |
eSX 150
OptiPro's eSX 150 optical machining centers have 5 controllable axes: X,Y,Z, B & C with up to 5 axes of simultaneous movement. The powerful Fagor 8070 CNC with user-friendly set up and run programs make the eSX 150 an excellent choice for prototype to production manufacturing of precision optics. Additional features include automatic tool and work piece probes, twin spindles, automatic tool changers, mist removal, and more. |
eSX 150 >> |
|
|
|
 |
eSX 300
OptiPro's eSX 300 is an enhanced version of the eSX150 optical machining center. It also has 5 controllable axes: X,Y,Z, B & C with up to 5 axes of simultaneous movement. The powerful Fagor 8070 CNC with user-friendly set up and run programs make the eSX 300 an excellent choice for prototype to production manufacturing of precision optics up to 200 mm. Additional features include automatic tool and work piece probes, twin spindles, automatic tool changers, mist removal, and more. |
eSX 300 >> |
|
|
|
 |
eSX 400

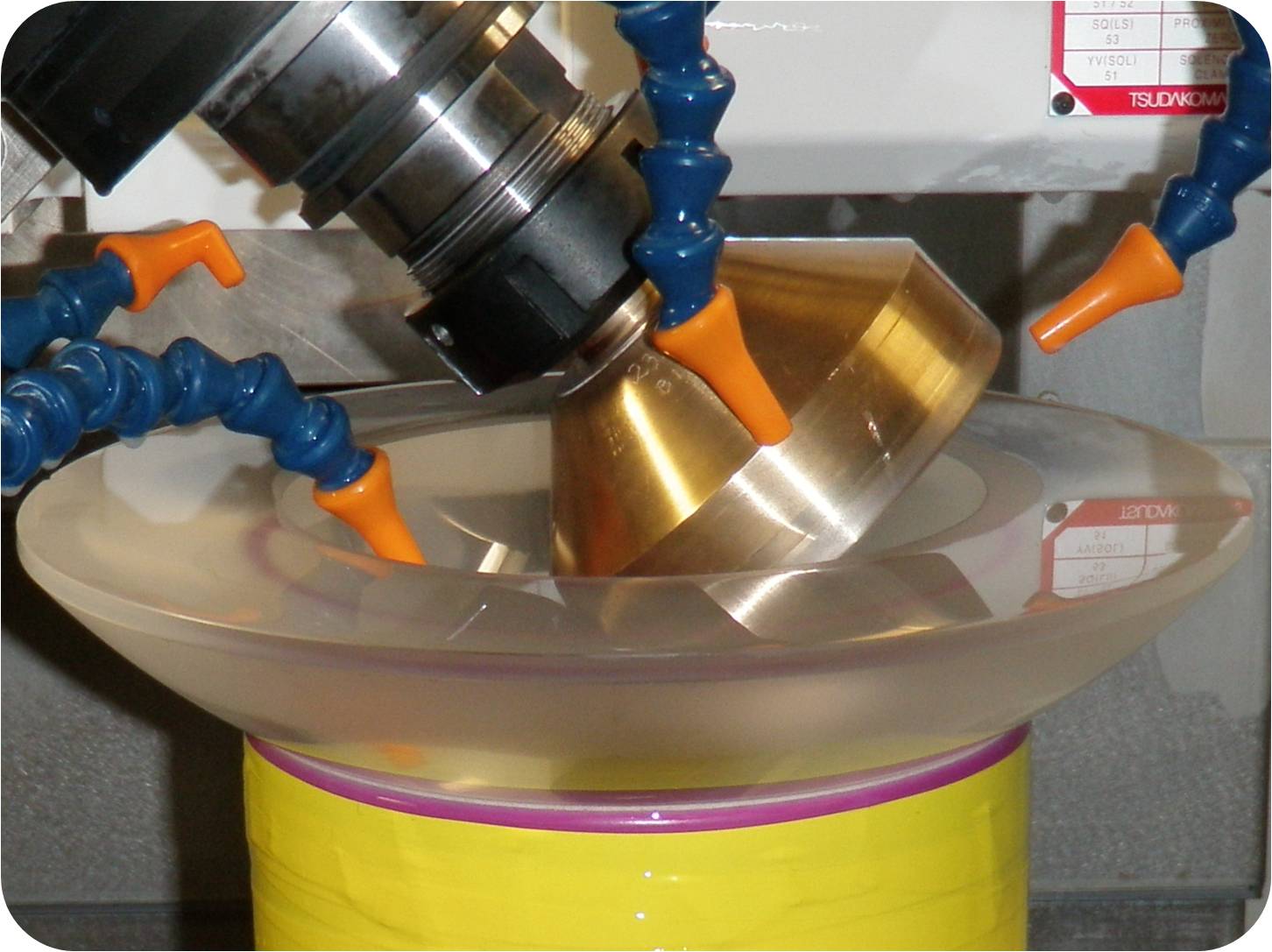

OptiPro's eSX 400 optical machining center is the most recent addition to the eSX Series machine line. It is the largest in the eSX Series and also has 5 controllable axes: X,Y,Z, B & C with up to 5 axes of simultaneous movement. The powerful Fagor 8070 CNC with user-friendly set up and run programs make the eSX 400 an excellent choice for prototype to production manufacturing of precision optics up to 450 mm, depending on geometry. This machine is also ideal for generating 1/2 meter class optics, large spheres and aspheres as well as parabolic mirrors. Additional features include automatic tool and work piece probes, twin spindles, automatic tool changers, mist removal, and more. |
eSX 400 >> |
|
|
|
 |
SXL 500

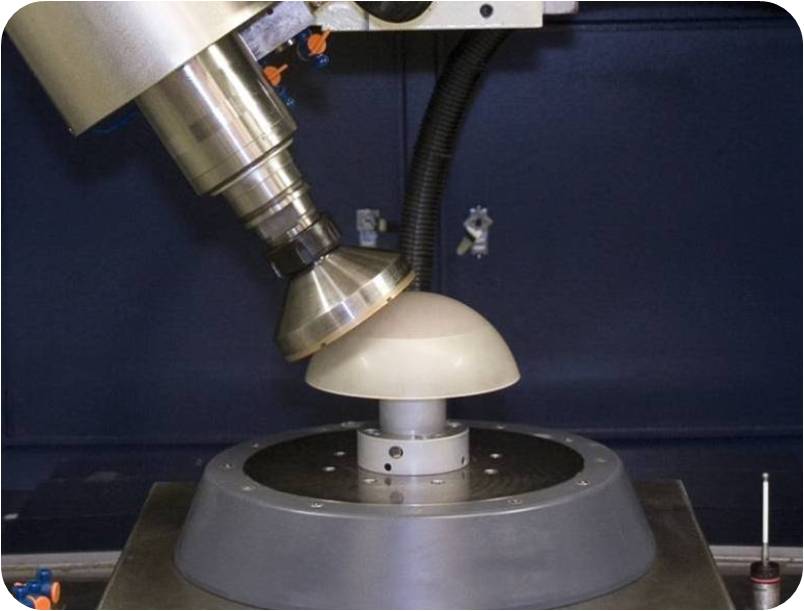

The SXL 500 developed by OptiPro Systems is a 5-Axis CNC controlled bridge style optical grinding platform. The unique axes configuration provides an accurate and versatile platform for grinding brittle materials such as glass, ceramics and hardened steels with a base size of 500mm. The straight forward user interface and probing routines provide a tool that opticians and CNC machinists alike can use to generate spherical and aspherical optical surfaces with reduced setup times. |
SXL 500 >> |
|
|
|
 |
ePX 200

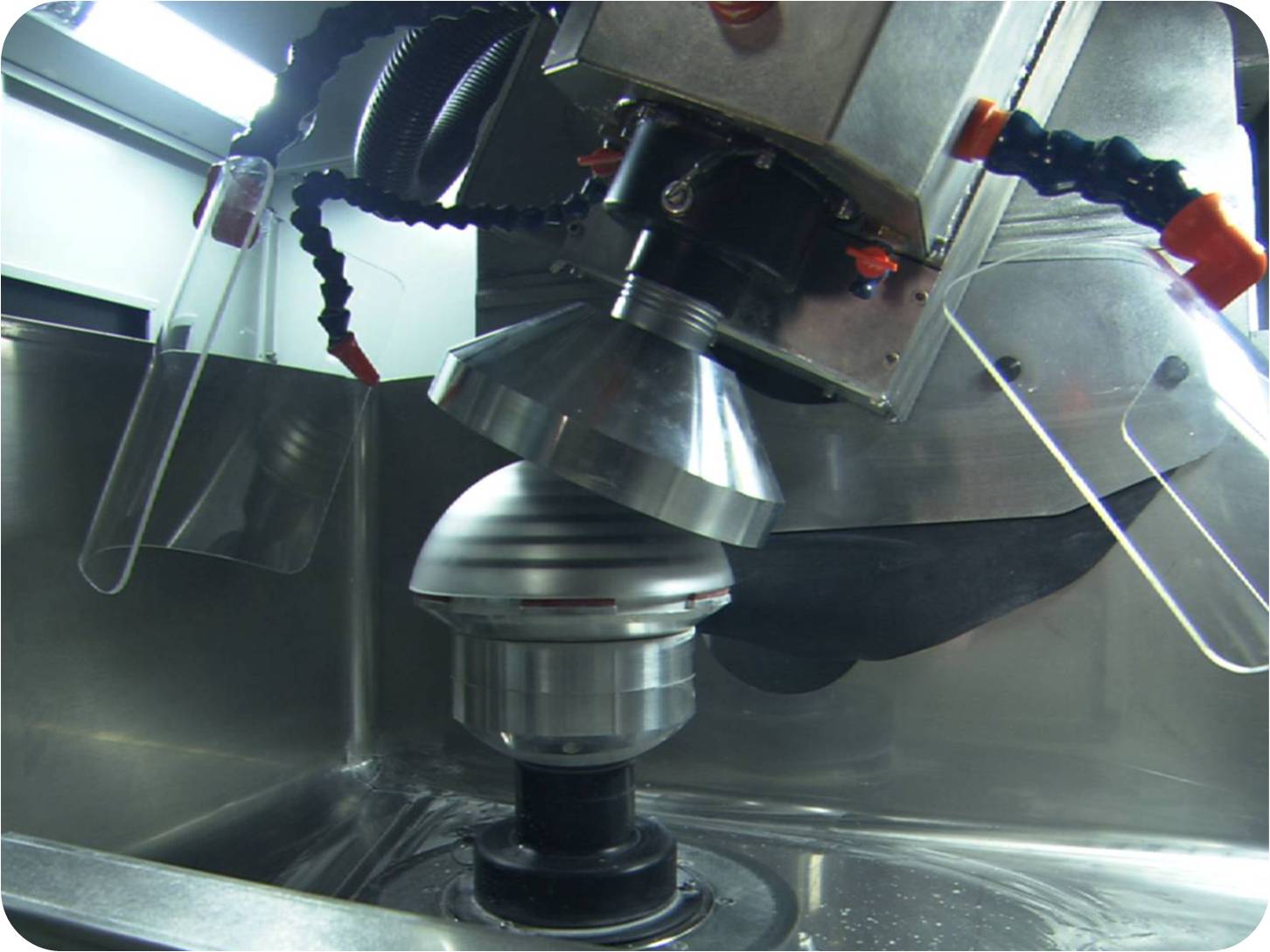

OptiPro's ePX 200 spherical high-speed polisher allows users to have multi-step polishing of spherical surfaces. Menu-driven graphical user interface makes it easy to input and view required process data, process cycle parameters, polishing pressure, polishing time, oscillation data, spindle loads, and more. |
ePX 200 >> |
|
|
|
 |
UltraForm® Finishing (UFF™)

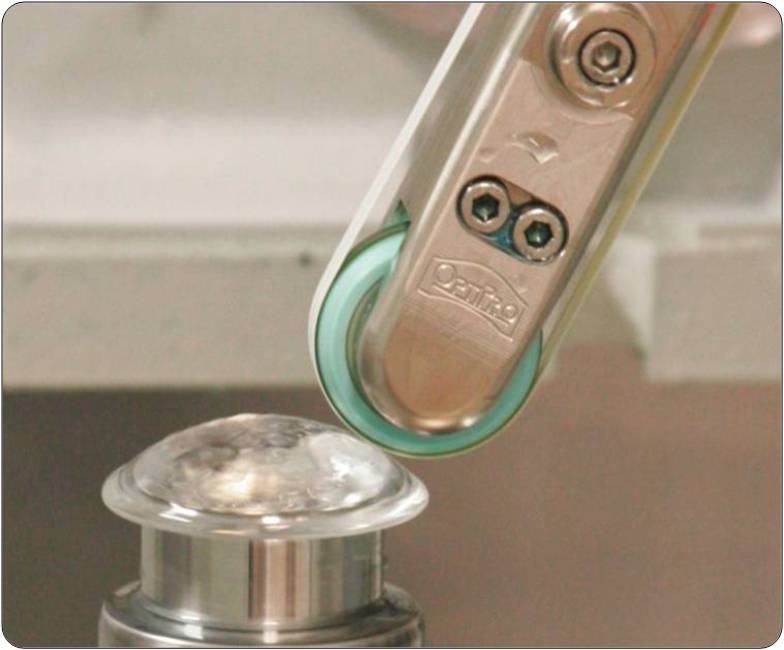

OptiPro's UltraForm® Finishing sub-aperture asphere polisher provides precise deterministic finishing of plano, spherical, aspheric and freeform optical components. UFF™ works on a wide range of materials including optical glasses, optical ceramics and stainless steel injection mold inserts. Lower cost consumables and easy to use interface makes UltraForm Finishing the latest and "best-in-class" deterministic polishing solution. |
UltraForm Finishing >> |
|
|
|
 |
OptiTrace 5000
OptiTrace 5000: A unique solution for the measurement of aspheres, cylinders and freeform precision optics. The integration of OptiPro's custom asphere analysis package, ergonomic environmental enclosure and the Y-Theta air bearing unit with the ZEISS Surfcom 5000 profilometer for 2D and 3D measurement. |
OptiTrace 5000 >> |
|
|
|
 |
UltraCURV

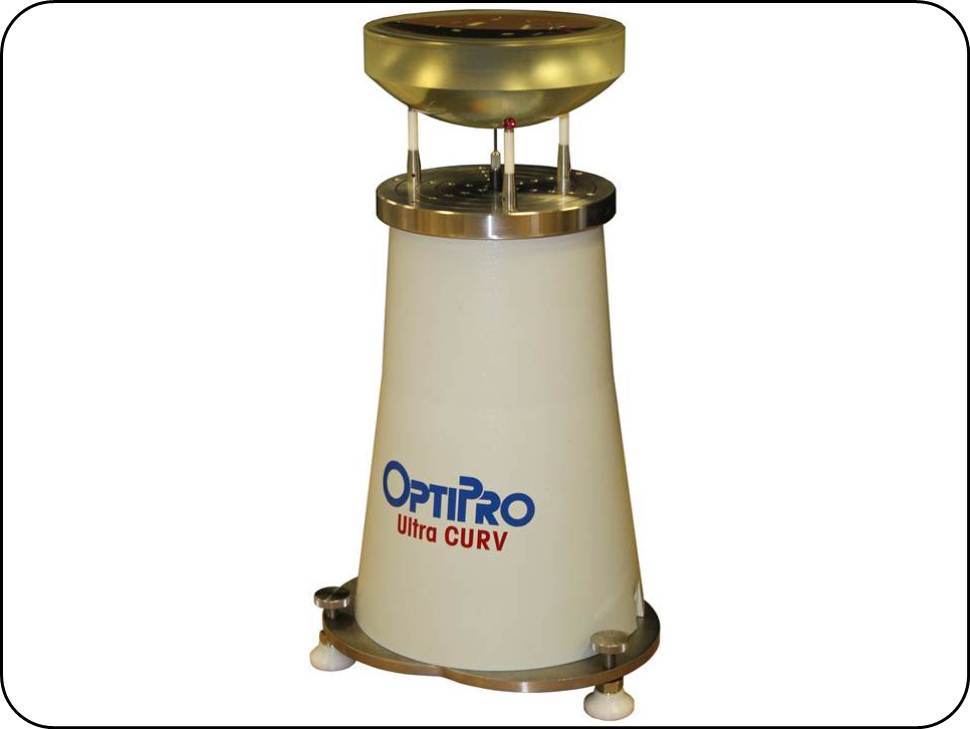

OptiPro's UltraCURV (Computerized Universal Radius Verifier) is an ultra accurate spherometer which includes a base unit, netbook computer with software, protective case, 3 sets of (3) moveable contacts with 6mm diameter balls (carbide / ruby), 3 small optic measuring rings and a complete instruction manual. |
UltraCURV >> |
|
|
|
 |
UltraSurf

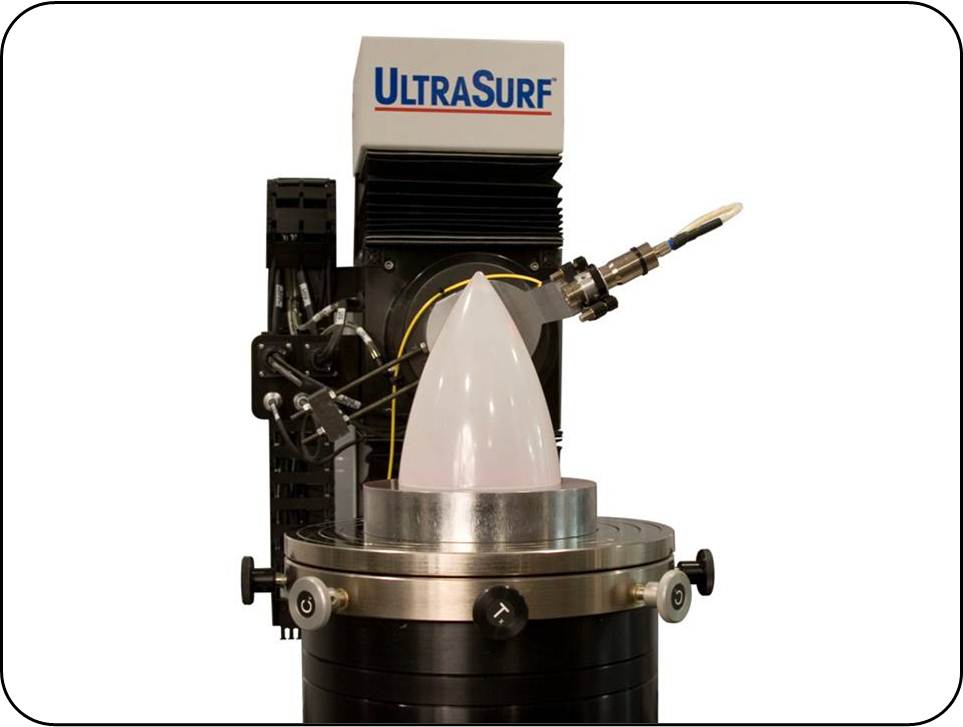

UltraSurf is a high precision 5-Axis non-contact metrology system. All axes are made of the highest quality air bearings and linear motor technology available. A variety of probe options allow for sub-micron single and dual surface scanning of precision optical components. OptiPro's innovative software provides comprehensive contour analysis, coordinate control features, and surface texture analysis for roughness and p-v waviness profiles. ASCII data export provides a seamless integration to standard optical fabrication platforms. |
UltraSurf >> |
