Asphere Measurement System

OptiTrace 5000

OptiTrace 5000 Asphere Measurement System is a unique solution for the measurement of aspheres, cylinders and freeform precision optics. The integration of OptiPro's custom asphere analysis package, ergonomic environmental enclosure and the Y-Theta air bearing unit with the ZEISS Surfcom 5000 profilometer for 2D and 3D measurement.

OptiTrace 5000 Tech Specs >>

OptiTrace 5000 Brochure >>

View the OptiTrace 5000 Video >>

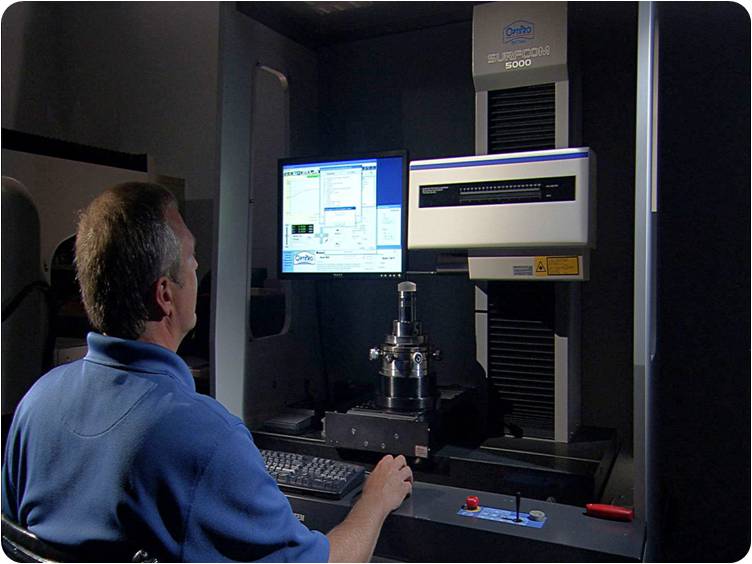

OptiTrace 5000 Asphere Metrology System
